• Storage:
  • (4) SATA ports at 1.5 Gb/s with NCQ supported
  • RAID 0, 1, 5, 10 supported.
  • 1x ATA-100 channel

• Rear Panel I/O Ports:
  • (1) Stacked PS/2 mouse and keyboard ports
  • (2) Side-by-side RJ45 ports
  • (2) Stacked USB 2.0 ports
  • (1) 9-pin COM port
  • (1) 15-pin VGA port

• Internal I/O Interface:
  • (1) Floppy connector
  • (1) IDE connector
  • (4) SATA ports
  • (4) USB v2.0 ports (2 at rear, 2 via cable)
  • (2) COM ports ( 1 at rear, 1 via cable)
  • 2 x 9-pin front panel pin header
  • 2 x 6-pin header for front panel LAN LED and
    ID LED switch
  • 2 x 25-pin connector for IPMI SMDC card (M3291)

• BIOS:
  • AMI BIOS on 8Mbit LPC Flash ROM
  • Serial console redirect
  • USB boot supported
  • ACPI supported
  • PnP, DMI 2.0, WfM 2.0 Power Management

• Power:
  • Onboard dual 4-phase digital VRM
  • EPS 12V (24+8) power connectors

• System Management:
  • (2) SMSC EMC6D103 hardware monitoring IC
  • (4) 3+1-pin (with smart FAN control) + (2) 3-pin fan headers support tachometer monitoring
  • Temperature & voltage monitoring
  • Watchdog timer support
  • Chassis intrusion detection

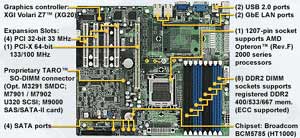

Motherboard Specifications

• Model:
  • Tyan S3970G2N-U Single Opteron 2000 Motherboard

• Processor Support:
  • (1) 1207-pin socket supports AMD Opteron (Rev. F) 2000 series processors
  • Uses the standard 3 1/2"/ 89mm socket connector
  • Up to 1.0 GHz Hyper-Transport link support

• Chipset:
  • Broadcom BCM 5785 (HT1000) core logic
  • SMSC SCH4307 Super I/O

• Memory:
  • Dual channel memory bus
  • (8) 240-pin DDR2 DIMM sockets
  • Supports reg. ECC, DDR2 533/667 mem.

• Expansion Slots:
  • (1) PCI-X 64-bit 100/133MHz (3.3V) slot (6th slot)
  • (4) PCI v2.3 32-bit/33MHz slots
  • (1) Tyan TARO SO-DIMM socket
  • Total of six usable slots

• On-Board LAN:
  • Two Intel i82541PI GbE LAN controllers
    - Operates on PCI 32-bit/33MHz bus
    - With ASF 2.0/WfM/Teaming support

• Optional IPMI Card:
  • M3291, IPMI 2.0 Remote System Mgmt. card
  • - Renesas H8S2167 BMC controller
  • - BT, KCS, Logging support; IPMI-over-LAN
  • - Remote Power on/off and reset

• Optional TARO Card:
  • M7901/ M7902, Ultra 320 SCSI TARO card
  • - Adaptec AIC-7901/7902 single/dual-channel Ultra320 SCSI controller
  • - Adaptec HostRAID 0, 1, 10 supported

• M9000 SAS/SATA II TARO card:
  • - Adaptec AIC-9405/9410 SAS controller
  • - Supports up to 4-port (M9000-5) and 8-port
    ( M9000-10 ) SAS & SATA running at 3.0 Gb/s
  • - Adaptec HostRAID 0, 1 & 10 supported

• Integrated Video:
  • XGI Volari Z7 (XG20) graphics controller
  • 16MB Frame Buffer of video memory

• Form Factor:
  • ATX footprint (12" x 10.2"; 304.8mm x 259.1mm)
