IM7930 Socket 775 Motherboard with 1 ISA slot, DMA support for sale. Specifications, price and availability

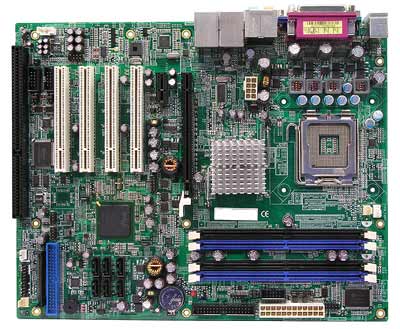

IM7930 Socket 775 Motherboard

Pentium 4 socket 775 motherboard with 1 ISA slot and DMA support



Pentium 4 socket 775 motherboard with 1 ISA slot, DMA support,pentium 4 motherboard,

IM7930 socket 775 motherboard with 1 ISA slot

  • Rear Panel I/O Ports:
    • One RS-232/422/485
    • 4 USB 2.0 ports
    • PS/2 keyboard and mouse
    • VGA CRT
    • RJ-45
    • Vertical Audio jacks
  • Internal I/O Interface:
    •  Three RS-232 ports via header. Total 4 serial ports.
    • 4 USB 2.0 ports via pin header - Total of 8 USB ports
    • IrDA Pin header
    • Digital I/O: 4 in / 4 out
  • BIOS:
    • Award BIOS, ACPI supported
  • Special Features:
    • Watchdog timer: Generates system reset; 256 levels
    • Hardware Monitoring: Monitors system/CPU temperature and voltage status

  • LPC I/O:
    • W83627EHG chipset supports IrDA x 1, Parallel x 1, COM1 (RS232), COM2 (RS232/422/485), FDC up to 1.44MB (slim-type), Hardware Monitor
  • Secondary I/O:
    • Fintek F81216; for COM3 / COM 4 (RS232)
  • Power Consumption:
    • Intel ® Core2 Duo E6600 2.4GHz CPU
      w/ 4x 1GB DDR2-800
      +12V: 5.15A
      +5V: 4.88A
      +3V: 4.19A
  • Environmental Factors:
    • Operating Temperature
      0 °C~60 °C (32 °F~140 °F)
      Storage Temperature
      -20 °C~80 °C (-4 °F~176 °F)
      Relative Humidity
      10%~90% (non-condensing)

Motherboard Specifications

  • Model:
    • IM7930 socket 775 motherboard with 1 ISA slot
  • Processor Support:
    • Intel ® Core2 Quad, Intel ® Core2 Duo, Intel ® Celeron ® 400 Sequence processor (Conroe-L)
  • Chipset:
    • Intel ® Q35 Chipset
      ICH9
  • FSB:
    • 800MHz / 1066MHz / 1333MHz
  • Memory:
    • Four DDR2 sockets, up to 8GB DDR SDRAM
      667/800MHz DDRII SDRAM, w/o ECC
  • Expansion Slots:
    • 1 x PCI Express x16
    • 1 x PCI Express x1
    • 4 x PCI
    • 1 x ISA (slave only) - supports DMA
  • On-Board Video:
    • Q35 chipset built-in
    • Supports CRT interface
    • Shared memory, max. 384MB
  • On-Board Audio:
    • ICH9 built-in audio + AC97 codec
      (Line out, Line, Mic jacks on board)
  • On-Board LAN:
    • Intel 82562V 10/100 BaseT

  • Storage:
    • 4x SATA II ports, 3Gb/s
    • JMicro JMB368 PCI-E to PATA controller for one PATA channel supporting (40-pin IDE) 2 IDE devices featuring UDMA33/66/100, and CompactFlash socket on IDE1 (use either one at one time)
  • Form Factor:
    • ATX
    • Dimensions: 305mm x 244mm (12" x 9.6")
