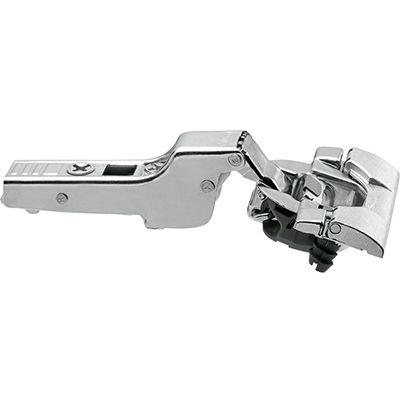

110 deg Half Overlay Soft Close Inserta - Nickel

Part # 565376

Condition : New- Retail Box | Warranty : 30 days

Brand : Heatwave
0 review | Add Your Review

$17.05

110 deg Half Overlay Soft Close Inserta - Nickel

Deactivation switch for small/light doors

New geometry for door thicknesses up to 1"

New Inserta design

For door overlays up to 18mm

Cup boring depth of 13mm

New insertion ram needed BMZM.0040 for press-in

Do not use rubber mallet to insert press-in hinges

Compatible with existing Clip mounting plates and hinge arm cover caps

Faceframe Applications
  • 1/4" overlay - Hinge B071B3650 and Mounting Plate B175H6000
  • 1/2" overlay - Hinge B071B3550 and Mounting Plate B175H6030
  • Full overlay - Hinge B071B3550 and Mounting Plate B175H6000
  • Inset doors - Hinge B071B3650 and Mounting Plate B175H5030.21
Frameless Applications
  • 1/4" overlay - Hinge B071B3650 and Mounting Plate B175H710
  • 1/2" overlay - Hinge B071B3550 and Mounting Plate B175H713
  • Full overlay - Hinge B071B3550 and Mounting Plate B175H710
  • Inset doors - Hinge B071B3750 and Mounting Plate B175H710
Specifications
  • Color: Nickel
  • Opening Degree: 110 deg
  • Hinge Cup Size: 35 mm

No details available
No reviews available
