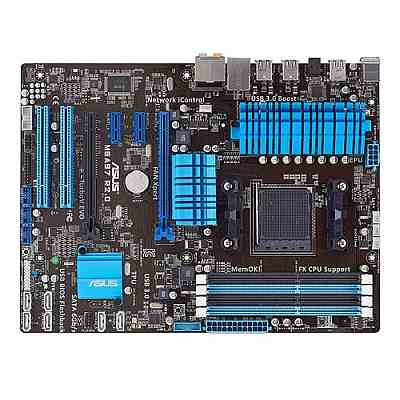

ASUS M5A97 R2.0 Motherboard
ASUS M5A97 R2.0, AMD AM3+ FX/Phenom II/Athlon II/Sempron 100
Series Processors, 2 PCI Slots, 2 PCI Slot X1, 2 PCI Express x16 slots,
Support for
SATA3, Raid, DDR3 RAM, On
Board Audio, Video, LAN, 16 USB ports, Micro ATX
form Factor. |
|
ASUS M5A97 R2.0 Motherboard
- Rear Panel I/O Ports:
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.0
- 6 x USB 2.0
- 1 x Optical S/PDIF out
- 6 x Audio jack(s)
- Internal I/O Interface:
- 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
(19-pin)
- 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
- 1 x TPM connector(s)
- 1 x COM port(s) connector(s)
- 6 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (4 -pin)
- 3 x Chassis Fan connector(s) (4 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x DirectKey Button(s)
- 1 x DRCT header(s)
- 1 x MemOK! button(s)
- 1 x Clear CMOS jumper(s)
- 1 x USB BIOS Flashback button(s)
- USB Ports:
- ASMedia ® USB 3.0 controller :
- 4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
- AMD SB950 controller :
- 12 x USB 2.0/1.1 port(s) (6 at back panel, black, 6 at
mid-board)
- Over clocking Features:
- Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
- Accessories:
- User's manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- On-Board LAN:
- Realtek ® 8111F, 1 x Gigabit LAN Controller(s)
- BIOS:
-
64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI
2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3
Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory
information
- Support Disc:
- Drivers
- ASUS Utilities
- ASUS Update
- Anti-virus software (OEM version)
- Manageability:
- WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
|
Motherboard Specifications
- Model:
- ASUS M5A97 R2.0 Motherboard
- CPU:
- AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series
Processors
- Supports AM3+ 32 nm CPU
- Supports CPU up to 8 cores
- Supports CPU up to 140 W
- AMD Cool 'n' Quiet Technology
- System Bus:
- Up to 4.8 GT/s HyperTransport 3.0
- Chipset:
- Memory:
- 4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC,
Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified
Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity
or more, Windows ® 32-bit operation system may only recognize less
than 3GB. Install a 64-bit Windows ® OS when you want to install 4GB
or more memory on the motherboard.
* Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz.
With ASUS design, this motherboard can support up to DDR3 1333MHz.
- Expansion Slots:
- 1 x PCIe 2.0 x16 (blue)
- 1 x PCIe 2.0 x16 (x4 mode, black)
- 2 x PCIe 2.0 x1
- 2 x PCI
- On-Board Audio:
- Realtek ® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Audio Feature :
- ASUS Noise Filter
- Optical S/PDIF out port(s) at back panel
- Multi-GPU Support:
- Supports AMD Quad-GPU CrossFireX Technology
- Storage:
- AMD SB950 controller :
- 6 x SATA 6Gb/s port(s), gray
- Support Raid 0, 1, 5, 10
- Special Features:
- ASUS Dual Intelligent Processors - TPU & EPU :
- ASUS TPU :
Auto Tuning
TurboV
- ASUS EPU :
EPU
- ASUS Power Design :
4 +2 Phase Power Design
- ASUS Exclusive Features :
Remote GO!
USB BIOS Flashback
MemOK!
AI Suite II
Ai Charger+
Front Panel USB 3.0 Support
ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
Network iControl
USB 3.0 Boost
- ASUS Quiet Thermal Solution :
Stylish Fanless Design Heat-sink solution
ASUS Fan Xpert
- ASUS EZ DIY :
DirectKey
Precision Tweaker 2
ASUS O.C. Profile
ASUS EZ Flash 2
ASUS MyLogo 2
Multi-language BIOS
- ASUS Q-Design :
ASUS Q-Slot
- Form Factor:
- M-ATX Form Factor
- 12 inch x 9 inch ( 30.5 cm x 22.9 cm )
|
