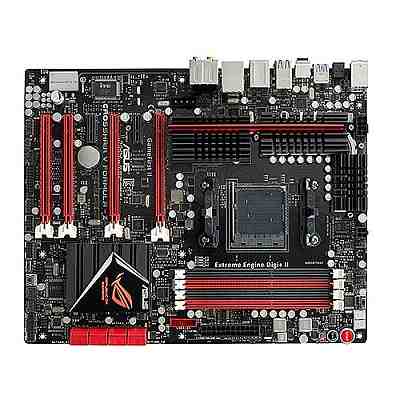

ASUS Crosshair V Formula-Z Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 2 x eSATA 6Gb/s
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.0
  • 8 x USB 2.0 (one port can be switched to ROG Connect)
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)
  • 1 x Clear CMOS button(s)
  • 1 x ROG Connect On/ Off switch(es)
• Internal I/O Interface:
  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x TPM connector(s)
  • 8 x SATA 6Gb/s connector(s)
  • 2 x CPU Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 3 x Optional Fan connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x DirectKey Button(s)
  • 1 x DRCT header(s)
  • 8 x ProbeIt Measurement Points
  • 3 x Thermal sensor connector(s)
  • 1 x EZ Plug connector(s) (4-pin Molex power connector)
  • 1 x Power-on button(s)
  • 1 x Reset button(s)
  • 1 x Go Button(s)

• USB Ports:
  • ASMedia ® USB 3.0 controller :
  • 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
  • AMD SB950 controller :
  • 12 x USB 2.0 port(s) (8 at back panel, black+white, 4 at mid-board)
• Over clocking Features:
  • ROG Connect :
    RC Diagram
    RC Remote
    RC Poster
    GPU TweakIt
  • Extreme Engine Digi+ II :
    8 + 2 phase power design
    2 -phase Memory power design
  • UEFI BIOS features :
    ROG BIOS Print
    GPU.DIMM Post
  • GameFirst
  • iROG
  • Extreme Tweaker
  • Overclocking Protection :
    COP EX (Component Overheat Protection - EX)
    ASUS C.P.R.(CPU Parameter Recall)
• On-Board LAN:
  • Intel ®, 1 x Gigabit LAN Controller(s)

• BIOS:
  • 64Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a, Multi-Language BIOS
• Support Disc:
  • Drivers
  • GameFirst II
  • Kaspersky ® Anti-Virus
  • DAEMON Tools Pro Standard
  • ROG CPU-Z
  • ASUS WebStorage
  • ASUS Utilities (AI SUITE II/TurboV EVO/ASUS Update)
• Manageability:
  • WOL by PME, WOR by PME, PXE

Motherboard Specifications

• Model:
  • ASUS Crosshair V Formula-Z Motherboard

• CPU:
  • AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
  • Supports AM3+ 32 nm CPU
  • Supports CPU up to 8 cores
  • Supports CPU up to 140 W
  • AMD Cool 'n' Quiet Technology
• System Bus:
  • Up to 5.2 GT/s HyperTransport 3.0
• Chipset:
  • AMD 990FX/SB950
• Memory:
  • 4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows ® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows ® OS when you want to install 4GB or more memory on the motherboard.
• Expansion Slots:
  • 3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8)
  • 1 x PCIe 2.0 x16 (x4 mode)
  • 2 x PCIe 2.0 x1
• On-Board Audio:
  • SupremeFX III built-in 8-Channel High Definition Audio CODEC
  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Audio Feature :
    SupremeFX Shielding Technology
    1500 uF Audio Power Capacitor
    Gold-plated jacks
    Blu-ray audio layer Content Protection
    DTS Ultra PC II
    DTS Connect
    Optical S/PDIF out port(s) at back panel
• Multi-GPU Support:
  • Supports NVIDIA ® Quad-GPU SLI Technology
  • Supports NVIDIA ® 3-Way SLI Technology
  • Supports AMD 3-Way CrossFireX Technology
• Storage:
  • AMD SB950 controller :
  • 6 x SATA 6Gb/s port(s), red
  • Support Raid 0, 1, 5, 10
  • ASMedia ® ASM1061 controller :
  • 2 x SATA 6Gb/s port(s), red
  • 2 x eSATA 6Gb/s port(s), red
• Special Features:
  • ASUS Power Design :
    ASUS EPU
  • TurboV
  • Core Unlocker
  • ASUS Exclusive Features :
    AI Suite II
    Ai Charger+
    USB 3.0 Boost
    Disk Unlocker
  • ASUS Quiet Thermal Solution :
    ASUS Fan Xpert
  • ASUS EZ DIY :
    ASUS O.C. Profile
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 2
    ASUS MyLogo 3
  • ASUS Q-Design :
    ASUS Q-Shield
    ASUS Q-Code
    ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    ASUS Q-Slot
    ASUS Q-DIMM
    ASUS Q-Connector
• Accessories:
  • User's manual
  • I/O Shield
  • 6 x SATA 6Gb/s cable(s)
  • 1 x 3-Way SLI bridge(s)
  • 1 x SLI bridge(s)
  • 1 x CrossFire cable(s)
  • 1 x Q-connector(s) (2 in 1)
  • 1 x ROG Connect cable(s)
  • 1 x 12 in 1 ROG Cable Label(s)

• Form Factor:
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
