Home > Networks and Communications > Security & Surveillance > Exterior Cameras & devices > AGI PTZ615X

Click here to go back

115069 - AGI PTZ615X
Condition: New . Warranty:1 year . $630.50

AGI PTZ615X HD-SDI Sony ExviewHAD Camera for sale

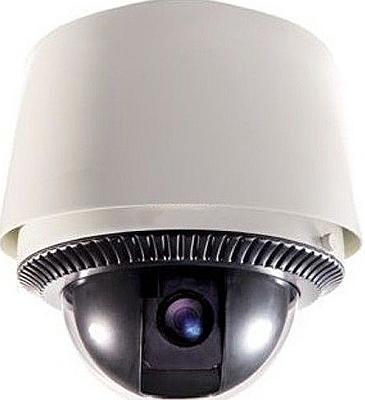

AGI PTZ615X Camera

26X Zoom Sony ExviewHAD 24VAC Outdoor housing

AGI, PTZ615X, 26X, Zoom, Sony, ExviewHAD, 26x, 24VAC, 480TVL, 3.5-91mm, Outdoor, housing, specifications, availability, price, discounts, bargains

An installer favorite, the PTZ615X makes it a great all-around camera for both residential and commercial applications such as offices, loading docks, back yards and other locations where a nice overview is required.

  • 1/4 inch SONY CCD
  • 480TVL
  • 26x Zoom 3.5-91mm
  • 0.1 preset accuracy
  • 400 /s pan preset speed and 150 /s tilt
  • 360 endless pan range
  • Weather Proof: IP66 standard
  • 250 Preset positions
  • Privacy zone masking (24 zones, while maximum 8 zones masked simultaneously in one image)

In the Box
  • Camera
  • AC Adapter (24V 2.3A)
  • Gloves
  • Plumbers Tape
  • CD Rom User Manual
Wall mount bracket NOT included. (VC-B-PTZ-600WM)


Brand AGI
Model DS-2AF1-615x
Sensor Type 1/4 inch SONY EXVIEW CCD
Horizontal Resolution 480TVL
Effective Pixels NTSC: 768 (H)494 (V)
Scanning System NTSC
Video Output 1.0Vpp/75ΩBNC
S/N Ratio Better than 50dB
AGC Auto / Manual
Auto Flip YES
Auto Focus Auto / Manual
Day & Night ICR
Digital Zoom Up to 12x
Lens Aperture Range F1.4-F3.8
Lens Field of View 42 to 1.6 (WIDE-TELE )
Min. Illumination 1.0Lux / F1.4 (Color) 0.01Lux / F1.4 (B/W)
Pan Range 360 endless
Pan Speed Manual: approx. 0.3 /s-300 /s, Preset: up to approx. 400 /s
Tilt Speed Manual: approx. 0.5 ~90 /s, Preset: up to approx. 150 /s
Tilt Range 0 ~90 (Auto ip)
Zoom Ratio 3.5-91mm, 26x
Zoom Speed Approx. 4.0sec (Optical WIDE-TELE )
Tour Mode OFF / Preset / Patrol / Pattern / Auto Scan / Random Scan / Frame Scan
Password Protection Preventing unauthorized person modifying the parameter
OSD Menu English, Chinese
Privacy Masking Up to 24 zones, while maximum 8 zones masked simultaneously in one image
Working Temp/Humidity -30 C ~ 60 C (outdoor) / -10 C ~ 50 C (indoor), 90% or less (without condensation)
White Balance ATW / Manual
Electronic Shutter N: 1/4~1/10,000s
IP Rating IP66 standard compatible (Just for outdoor dome), TVS 3000V limited lightning protection
Preset 250
Power Supply 24VAC
Power Consumption 30W max (Heater ON)
Weight 11 lbs
