• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x VGA Port
  • 1 x COM port
  • 1 x LPT port
  • 5.1 Channel Audio I/O
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Gigabit LAN Controller


• Power Connector :
  • 1 x 24pin main power
  • 1 x 4pin CPU power


• Form Factor:
  • uATX Form Factor
  • 9.6"x 8.4" (24.4cm x 21.3cm)

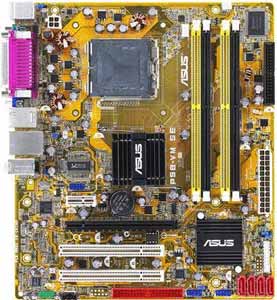

Asus P5B-VM SE Motherboard

• Model:
  • Asus P5B-VM SE Motherboard

• Processor Support:
  • Supports Intel® Core2 Extreme / Core2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron® D
  • Intel® Quad-Core CPU ready
  • Support Intel EIST EM64T/Hyper-Threading Technology
  • Socket LGA 775


• FSB:
  • 1066/800/533 Mhz


• Chipset:
  • Intel® G965

• Memory:
  • 4x 240-pin DDR2 DIMM socket support up to 8 GB
  • Support Dual Channel DDR2 800/667/533 Mhz
  • Non-ECC, un-buffered


• Expansion Slots:
  • 1 x PCI Express x16
  • 1 x PCIe x1
  • 2 x PCI


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA 3Gb/s


• Audio:
  • Realtek ALC883, 6-CH High-Definition Audio CODEC
  • Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking


• Video:
  • Intel Graphics Media Accelerator X3000
  • Max. shared memory of 256MB
  • Support Microsoft® DX 9, OpenGL 1.5, Pixel Shader 3.0
  • Max. resolution:2048x1536@75Hz


• BIOS:
  • 8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
