Supermicro X6DVA-EG2

Supermicro X6DVA-EG2

Part # 108455

Condition : New- Retail Box

| Warranty: 365 days

Brand : Supermicro
| Log in to add review
Rate this product:

Loading...

Note: Click “Notify”, enter your email, and get alerted when the item is back in stock.

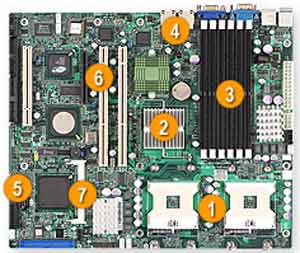

Supermicro X6DVA-EG2 Motherboard

Supermicro X6DVA-EG2 Motherboard

Dual 604 Socket for Intel 64bit Xeon, Intel E7530, 6 DIMM, SATA, IDE, RAID, USB, Video, LAN, 1 PCI Express 5x, 2 PCI-X, 1 PCI Support.



Supermicro X6DVA-EG2 Dual 604 Socket for Intel 64bit Xeon, Intel E7530, 6 DIMM, SATA, IDE, RAID, USB, Video, LAN, 1 PCI Express 5x, 2 PCI-X, 1 PCI Support.

  • Internal I/O Interface:
    • 6300ESB (Hance Rapids) SATA Controller (2x Drive support)
    • 2x SATA Ports
    • RAID 0, 1, JBOD support
    • Support for Intelligent Platform Management Interface v.2.0
      (Optional: AOC-IPMI20-E)

  • Storage/RAID:
    • Two Serial ATA ports
    • Two SATA hard drives supported
    • Dual EIDE channels support up to four UDMA IDE devices
    • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
    • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
  • BIOS:
    • 8Mb Flash EEPROM with AMI ® BIOS
    • Plug and Play (PnP)
    • SMBIOS 2.3
    • APM 1.2
    • DMI 2.1
    • ACPI 1.0

  • On-Board Video:
    • ATI Rage XL SVGA PCI video controller
    • 8 MB of video memory
  • Rear Panel I/O Ports:
    • 2x RJ45 LAN port
    • 2x USB rear ports
    • 2x USB internal headers
    • USB 2.0 Compliant / 1.1 Compliant
    • 1x VGA port
    • PS/2 keyboard and mouse ports
    • 2 Fast UART 16550 serial ports
    • 1 ECP/EEP parallel port header
  • Form Factor:
    • ATX
    • 12" x 10" (30.5cm x 25.4cm)



X6DVA-EG2 Specifications

  • Model:
    • X6DVA-EG2
  • Processor Support:
    • Dual 604-pin FC-mPGA4 Sockets
    • Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type
    • 800 MHz system bus
    • Supports 64-bit Operating Systems
    • Supports 32-bit Operating Systems
  • Chipset:
    • Intel E7530

  • FSB:
    • 800MHz FSB

  • Memory:
    • Six 240-pin DIMM sockets
    • Supports up to 12 GB DDRII 400 MHz memory
    • Dual channel memory bus
    • Memory must be populated in pairs
    • DDRII 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

  • Expansion Slots:
    • 1x PCI Express (x4) slot
    • 1x 64-bit 133MHz PCI-X (3.3V) slot
    • 1x 64-bit 100MHz PCI-X (3.3V) slots
    • 1x 32-bit 33MHz PCI (5V) slot
  • On-Board LAN:
    • Intel ® 82541GI Dual Port Gigabit Controller
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

  • Manageability:
    • Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
    • CPU Core 3-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V
    • Adjustable CPU clock frequency ratio settings (via BIOS)
    • Total of six 4-pin fan headers
      6x fans with status monitoring
    • Status monitor with firmware/software on/off control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connector
    • Temperature Monitoring for CPU, chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • CPU Overheat LED
    • System Overheat LED
    • Suspend-state indicator LED
    • Chassis intrusion detection
    • Chassis intrusion header
    • Processor protection support
    • SDDC
