Supermicro X6DAE-G Dual 604 Socket for Intel 64bit Xeon 8 DIMM RAID SATA IDE Intel E7525 1 PCI Express 16x 3 PCI-X 1 PCI Audio LAN USB Support. Extended ATX form factor.

Name: Supermicro X6DAE-G Dual 604 Socket for Intel 64bit Xeon 8 DIMM RAID SATA IDE Intel E7525 1 PCI Express 16x 3 PCI-X 1 PCI Audio LAN USB Support. Extended ATX form factor.
Brand: Supermicro
SKU: 108447
Price: 485.67 USD
Availability: OutOfStock

Part # 108447

Condition : New- Retail Box

| Warranty: 365 days

Brand : Supermicro

| Log in to add review

Rate this product:

Updating...

Quantity: Out of Stock

Out of Stock: Don’t worry—click “Notify Me” and we’ll email you as soon as it’s back.

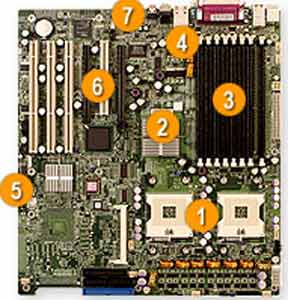

Supermicro X6DAE-G Motherboard

Dual 604 Socket for Intel 64bit Xeon, 8 DIMM, RAID, SATA, IDE, Intel E7525, 1 PCI Express 16x, 3 PCI-X, 1 PCI, Audio, LAN, USB Support.

Supermicro X6DAE-G Dual 604 Socket for Intel 64bit Xeon, 8 DIMM, RAID, SATA, IDE, Intel E7525, 1 PCI Express 16x, 3 PCI-X, 1 PCI, Audio, LAN, USB Support.

Internal I/O Interface:
- ICH5R SATA Controller
- RAID 0, 1, JBOD support
- Support for Intelligent Platform Management Interface v.2.0
  (Optional: AOC-IPMI20-E)
Storage/RAID:
- Two Serial ATA ports
- Two SATA hard drives supported
- Dual EIDE channels support up to four UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100
- 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support

BIOS:
- 8Mb Flash EEPROM with Phoenix ® BIOS
- Plug and Play (PnP)
- SMBIOS 2.3
- APM 1.2
- DMI 2.1
- ACPI 1.0
- Fan Speed Control
On-Board Audio:
- AC'97 audio CODEC
- high quality 6-channel sound

Rear Panel I/O Ports:
- 1x RJ45 LAN port
- 4x USB rear ports
- 4x USB internal headers
- USB 2.0 Compliant / 1.1 Compliant
- 1x Line In / Line Out / Microphone ports
- PS/2 keyboard and mouse ports
- 2 Fast UART 16550 serial ports
- 1 ECP/EEP parallel port

Form Factor:
- Extended ATX
- 12" x 13.05" (30.5cm x 33.2cm)

X6DAE-G Specifications

Model:
- Supermicro X6DAE-G

Processor Support:
- Dual 604-pin FC-mPGA4 Sockets
- Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type
- 800 MHz system bus
- Supports 64-bit Operating Systems
- Supports 32-bit Operating Systems

Chipset:
- Intel E7525
FSB:
- 800MHz FSB
Memory:
- Eight 184-pin DIMM sockets
- Supports up to 16 GB DDR 333 MHz memory or
- Supports up to 32 GB DDR 266 MHz memory
- Dual channel memory bus
- Memory must be populated in pairs
Expansion Slots:
- 1 (x16) PCI-e slot
- 1 (x4) using (x16) PCI-e slot
- 1x 64-bit 133MHz PCI-X (3.3V) slot
- 2x 64-bit 100MHz PCI-X (3.3V) slots
- 1x 32-bit 33MHz PCI (5V) slot

On-Board LAN:
- Intel ® 82545GM Single Port Gigabit Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Manageability:
- Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
- CPU Core 4-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V
- Total of eight 4-pin fan headers
- 8 fans with status monitoring
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connector
- Temperature Monitoring for CPU, chassis, environment
- CPU thermal trip support
- Thermal Monitor 2 support
- CPU Overheat LED
- System Overheat LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
- SDDC
