Asus P5E

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x Optical + 1 x Coaxial S/PDIF Output port
  • 7.1 Channel audio connectors
  • 6 x USB 2.0/1.1 ports
  • 1 x IEEE 1394a
  • 1 x RJ 45 Port


• Power Connector :
  • 1 x 24 pin main power
  • 2 x 4 pin CPU power


• Firewire:
  • VIA VT6308P controller supports 2 x IEEE 1394a ports


• Form Factor:
  • ATX Form Factor , 12" x 9.6" 30.5 cm x 24.4 cm

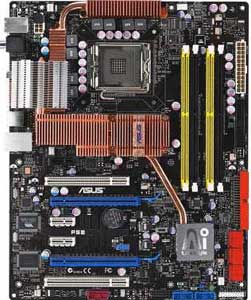

Asus P5E Motherboard

• Model:
  • Asus P5E Motherboard

• Processor Support:
  • Supports Intel ® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium ® Extreme / Pentium ® D / Pentium ® 4 / Celeron ® D
  • Compatible with Intel® 05B/05A/06 processors
  • Support Intel ® next generation 45nm Multi-Core CPU
  • Socket LGA 775


• FSB:
  • 1600/1333/1066/800 Mhz


• Chipset:
  • Intel ® X38

• Memory:
  • 4x 240-pin DDR2 DIMM socket support up to 8 GB
  • Support Dual Channel DDR2 1200/1066/800/667Mhz
  • Non-ECC, un-buffered


• Expansion Slots:
  • 2 x PCIe x16 (both @ x16 mode) supports CrossFire Technology
  • 3 x PCIe x1
  • 2 x PCI 2.2


• Storage:
  • 6 x SATA 3.0 Gb/s ports
  • Intel ® Matrix Storage Technology with RAID 0, 1, 5, 10 support
  • 1 x UltraDMA 133/100/66 for up to 2 PATA devices


• Audio:
  • RealTek ALC888 8 -Channel Azalia Audio codecs
  • Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
  • Coaxial/Optical S/PDIF out ports at back I/O
  • ASUS Noise-Filtering


• On-Board LAN:
  • Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2


• BIOS:
  • 16 Mb Flash ROM, DMI 2.0, AMI BIOS, PnP, WfM 2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
  • WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
