• Internal I/O Interface:
  • 3 x USB connectors support additional 6 USB ports
  • 1 x Floppy disk drive connector
  • 1 x IDE connector for two devices
  • 1 x COM connector
  • 5 x SATA connectors
  • 1 x CPU Fan connector
  • 1 x Chassis Fan connector
  • 1 x Power Fan connector
  • 1 x IEEE1394a connector
  • Front panel audio connector
  • 1 x Azalia Digital Header
  • 1 x S/PDIF Out Header
  • Chassis Intrusion connector
  • CD audio in
  • 24-pin ATX Power connector
  • 1 x 4-pin ATX 12V Power connector

• BIOS:
  • 8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

• Special Features:
  • ASUS Quiet Thermal Solution:
    - ASUS AI Gear
    - ASUS AI Nap
    - ASUS Advanced Q-Fan
  • ASUS Crystal Sound:
    - Noise filter
  • ASUS EZ DIY:
    - ASUS Q-Connector
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
  • ASUS C.P.R.(CPU Parameter Recall)
  • ASUS MyLogo 2

• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL

• Accessories:
  • UltraDMA 133/100/66 cable
  • FDD cable
  • SATA cables
  • SATA power cables
  • 3 in 1 Q-connector
  • I/O Shield
  • User's manual

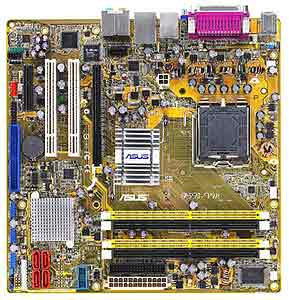

Motherboard Specifications

• Model:
  • Asus P5B-VM

• Processor Support:
  • Intel ® Quad-core CPU Ready
  • LGA775 socket for Intel ® Core2 Extreme / Core2 Duo / Pentium ® D / Pentium ® 4 / Celeron ® D Processors
  • Compatible with Intel 05B/05A/06 processors
  • Intel Hyper-Threading Technology ready

• Chipset:
  • Intel G965 / ICH8 with Intel ® Clear Video Technology

• FSB:
  • 1066 / 800 / 533 MHz

• Memory:
  • 4 x DIMM, max. 8GB, DDR2 800* / 667 / 533 MHz, non-ECC, un-buffered memory
  • Dual channel memory architecture

• Expansion Slots:
  • 1 x PCI-E x16
  • 1 x PCI-E x4
  • 2 x PCI 2.2

• On-Board Video:
  • Intel ® Graphics Media Accelerator X3000 (Intel ® GMA X3000) integrated
  • High Definition Video Processing with max. resolutions to 2048 x 1536 bpp(@ 75Hz)
  • Max. shared memory of 256MB
  • Support Microsoft ® DX 9, OpenGL 1.5, Pixel Shader 3.0

• On-Board Audio:
  • ADI ® AD1988 8-channel High Definition Audio CODEC
    - Support Jack-Sensing, Enumeration, Multi-streaming and
  • Jack-Retasking
    - Coaxial S/PDIF out port onboard
    - ASUS Noise Filter

• On-Board LAN:
  • Realtek ® PCI-E Gigabit LAN controller

• Storage:
  • Southbridge
    - 4 x SATA 3.0 Gb/s ports
  • JMicron ® JMB363 PATA and SATA controller
    - 1 x UltraDMA 133/100/66/33 for up to 2 PATA devices
    - 1 x Internal SATA 3.0 Gb/s port
    - 1 x External SATA 3.0 Gb/s port (SATA On-the-Go)
    - Support SATA RAID 0, 1 and JBOD (by 1x External SATA & 1x Internal SATA)

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Parallel port
  • 1 x External SATA
  • 1 x VGA port
  • 1 x IEEE1394a
  • 1 x RJ45 port
  • 4 x USB 2.0/1.1
  • 8-Channel Audio I/O

• Form Factor:
  • Micro ATX Form Factor
  • 9.6" x 9.6"
  • 24.5cm x 24.5cm
