• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x COM port
  • 1 x Parallel
  • 1 set 7.1 channel Audio Jack (6 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • PCIe 10/100M LAN controller


• Power Connector :
  • 1 x 24pin main power
  • 1x 4pin CPU power

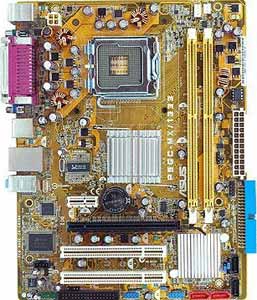

Asus P5GC-MX (FSB 1333) Motherboard

• Model:
  • Asus P5GC-MX (FSB 1333) Motherboard

• Processor Support:
  • Supports Intel ® Core2 Duo / Pentium ® D / Pentium ® 4 / Celeron ® D
  • Compatible with Intel ® 05B/05A/06 processors
  • Intel ® Hyper-Threading Technology ready
  • Socket LGA 775


• FSB:
  • 1333/1066/800/533 Mhz


• Chipset:
  • Intel ® 945GC(A2)

• Memory:
  • 2 x 240-pin DDR2 DIMM socket support up to 4 GB
  • Support Dual Channel DDR2 667/533 Mhz
  • Non-ECC, un-buffered


• Expansion Slots:
  • 1 x PCI Express x16
  • 1 x PCIe x1
  • 2 x PCI 2.2


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA2 3Gb/s


• Audio:
  • Realtek ALC883, 6-CH High-Definition Audio CODEC


• Video:
  • Intel Graphics Media Accelerator 950
  • Max. resolution:2048x1536@75Hz
  • Max. Vertical Refresh Rate:85Hz@ up to 1920x1440


• BIOS:
  • 4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS 2.3
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME


• Form Factor:
  • uATX Form Factor, 9.6"x 7.2" (24.5cm x 18.3cm)
