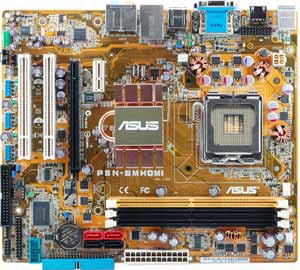

Asus P5N-EM HDMI Motherboard
Supports Intel® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium® D / Pentium® 4 / Celeron® D processor in the Socket LGA 775, NVIDIA GeForce 7100 chipset, 1 x PCI Express x16, 1 x PCIe x1, 2 x 32-bit PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Video (VGA, DVI & HDMI), Audio, SPDIF, Micro-ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 2 x USB 2.0/1.1 headers
- 1 x S/PDIF Out connector
- 1 x COM connector
1 x LPT connector
- 2 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x HDMI port & 1 x DVI port (Can not display at the same time)
- 1 x VGA Port
- 7.1 Channel Audio I/O
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- On-Board LAN:
- Integrated Gigabit Ethernet Controller
- Power Connector :
- 1 x 24pin main power
- 1 x 4pin CPU power
- Form Factor:
- Micro ATX
- 9.6 inch x8.2 inch ( 24.5 cm x 20.8 cm )
|
Asus P5N-EM HDMI Motherboard
- Model:
- Asus P5N-EM HDMI Motherboard
- Processor Support:
- Supports Intel® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium® D / Pentium® 4 / Celeron® D
- Support Intel® 45nm CPU
- Compatible with Intel® 05B/05A/06 processors
- Support Intel EIST EM64T/Hyper-Threading Technology
- Socket LGA 775
- FSB:
- Chipset:
- Memory:
- 3 x 240-pin DDR2 DIMM socket support up to 4 GB
- Support Dual Channel DDR2 1066/800/667/533 Mhz
- Non-ECC, un-buffered
- Expansion Slots:
- 1 x PCI Express x16
- 1 x PCIe x1
- 2 x PCI
- Storage:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 4 x SATA 3Gb/s
Support RAID 0, 1, 0+1, 5 and JBOD
- Audio:
- Realtek ALC883 8 -Channel High-Definition Audio CODEC
- Support Jack-Sensing interface
- Video:
- GeForce 7100 GPU
- Max. resolution:1920x1440X32bpp, Horizontal:115KHz Vertical:75Hz
- BIOS:
- 4 Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS 2.3
- WOR by Ring,PXE, WOL, PME Wake Up
|
