• Storage:
  • Intel ® C216 chipset :
    2 x SATA 6Gb/s port(s), gray
    4 x SATA 3Gb/s port(s), blue
    Support Raid 0, 1, 5, 10
    Supports Intel ® Smart Response Technology, Intel ® Rapid Start Technology, Intel ® Smart Connect Technology *1

• Rear Panel I/O Ports:

  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-I
  • 1 x IEEE 1394a
  • 2 x LAN (RJ45) port(s)
  • 2 x USB 3.0
  • 6 x USB 2.0
  • 1 x Coaxial S/PDIF out
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)

• Internal I/O Interface:

  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  • 2 x Vertical USB 2.0 port(s)
  • 1 x TPM connector(s)
  • 1 x COM port(s) connector(s)
  • 1 x IEEE 1394a connector(s)
  • 1 x CPU Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x Power Fan connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x parallel port connector(s)
  • 1 x Front panel connector(s) (1 x 20 -pin)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x MemOK! button(s)

• BIOS:
  • 64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3

• Special Features:

  • ASUS EPU :
  • - EPU
  • - EPU switch
  • ASUS Power Design :
  • - 8 +2 Phase Power Design
  • GPU Boost with switch
  • ASUS Exclusive Features :
  • - MemOK!
  • - AI Suite II
  • - Anti-Surge
  • - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  • ASUS Quiet Thermal Solution :
  • - Stylish Fanless Design Heat-sink solution
  • - ASUS Fan Xpert
  • ASUS EZ DIY :
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash
  • ASUS Q-Design :
  • - ASUS Q-Connector

• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Motherboard Specifications

• Model:

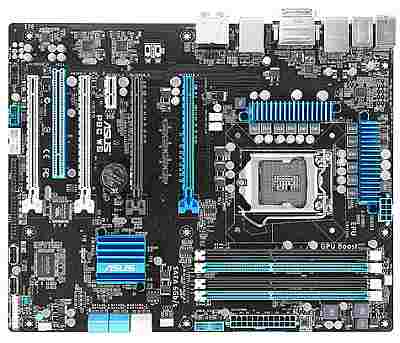

  • Asus P8C WS Motherboard


• Processor Support:
  • Intel ® Socket 1155 for 3rd/2nd Generation Core i3 Processors
    Intel ® Socket 1155 for Intel ® E3-1200/12x5 v2 processors
    Supports Intel ® 32 nm CPU
    Supports Intel ® 22 nm CPU
    Supports Intel ® Turbo Boost Technology 2.0

• Chipset:
  • Intel ® C216

• Memory:
  • 4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz ECC, Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel ® Extreme Memory Profile (XMP)

• Expansion Slots:

  • 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
  •  2 x PCIe 2.0 x16 (x4 mode)
  • 1 x PCIe 2.0 x1
  • 1 x PCI

• On-Board Video:
  • Integrated Graphics Processor
    Multi-VGA output support : DVI ports
    - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB

• On-Board Audio:
  • Realtek ® ALC892 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - Blu-ray audio layer Content Protection
    - Optical S/PDIF out port(s) at back panel

• On-Board LAN:
  • Intel ® 82574L, 2 x Gigabit LAN Controller(s)
    Support Teaming Technology

• Form Factor:
  • ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
