PC Chips M758 Micro ATX socket 370 motherboard with on-board sound video and LAN 168-pin SDRAM 2 PCI slots.

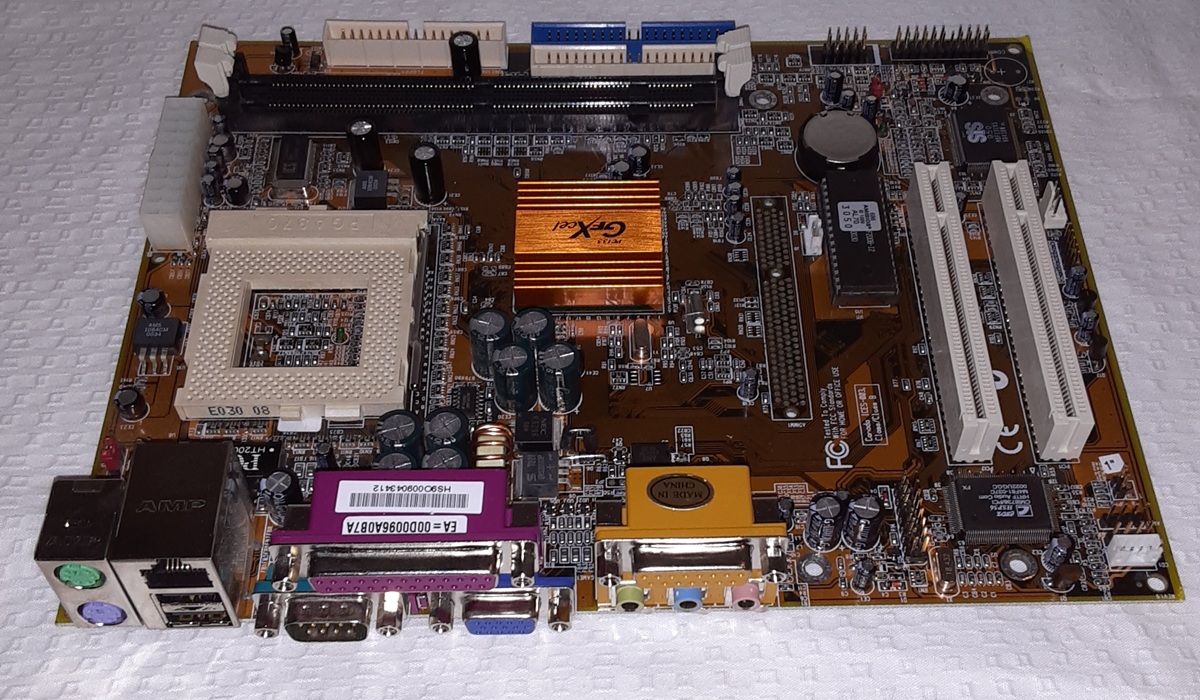

Pc chips M758 Motherboard

• BIOS:
  • Automatic CPU and board configuration
  • Supports Plug and Play configuration of peripheral devices and expansion cards

• Manageability:
  • ATX power supply connector
  • ACPI and previous PMU support, suspend switch, keyboard power on/off
  • Supports Wake on Modem, Wake on LAN and Wake on Alarm

• On-Board Audio:
  • Complies with the PC98 audio specification
  • 16-bit CODEC for full-duplex playback and recording
  • HRTF 3D professional audio supports both Direct Sound 3D ® and A3D ®-compatible interfaces
  • Supports Front Left/Right, Rear Left/Right Surround and Center/Subwoofer (Low-Frequency Effects) 6 channel audio-out
  • Driver support for MS-DOS, Microsoft Windows 95/98/2000/NT 4.0
  • Built-in 32ohm earphone buffer and 3D surround sound
  • Provides MPU-401 Game/MIDI port and legacy Sound Blaster 16 support
  • Downloadable Wave-table Synthesizer supports Direct Music ®
  • Stereo Mixer supports analog mixing from CD-Audio and Line In

• On-Board Video:
  • Onboard 128-bit 2D/3D 100MHz Host interface AGP Graphics Accelerator Complies with AGP V2.0
  • Shared memory architecture allows a maximum of 64 MB main memory to act as frame buffer
  • Supports high resolutions up to 1920x1200 16M colors, up to 2048x2048
  • Texture size and Virtual screen up to 4096x4096 Supports hardware DVD Accelerator

Motherboard Specifications

• Model:
  • Pc chips M758 Motherboard
• Processor Support:
  • FCPGA Celeron: 300~966 MHz, FSB: 66 MHz FCPGA
  • Pentium III: 500~1130MHz, FSB: 100MHz, 133MHz
  • Tualatin/Tualatin Celeron: up to 1.2GHz, FSB: 100MHz(only for model M758LRT+ and M758T+)
• Chipset:
  • GFXcel chipset
• FSB:
  • 66MHz, 100MHz or 133MHz.

• Memory:
  • Two DIMM slots for 168-pin SDRAM memory modules
  • Support for 66MHz, 100MHz, & 133MHz memory bus
  • Maximum installed memory is 2 x 512MB = 1 GB
• Expansion Slots:
  • Two 32-bit PCI slots

• On-Board LAN:
  • 10BaseT/100BaseTX Ethernet LAN
  • LAN controller integrates Fast Ethernet MAC and PHY compliant with IEEE802.3u 100BASE-TX, 10BASE-T and ANSI X3.263 TP-PMD standards
  • Compliant with ACPI 1.0 and the Network Device Class Power Management 1.0
  • High Performance provided by 100Mbps clock generator and data recovery circuit for 100Mbps receiver
• Rear Panel I/O Ports:
  • Provides PC99 Color Connectors for easy peripheral device connections
  • Floppy disk drive connector with 1Mb/s transfer rate
  • One serial port with 16550-compatible fast UART
  • One parallel port with ECP and EPP support =Two USB ports and two PS/2 ports for keyboard and mouse
  • One infrared port connector for optional module
• Internal I/O Interface:
  • Primary and Secondary PCI IDE channels
  • Support for PIO (programmable input/output) modes
  • Support for Multiword DMA modes Support for Bus Mastering and Ultra DMA 33/66/100 modes (the Ultra DMA 100 mode is optional)
• Form Factor:
  • Micro-ATX form factor (24.4cm x 19cm){ 9.61'' x 7.48''}
