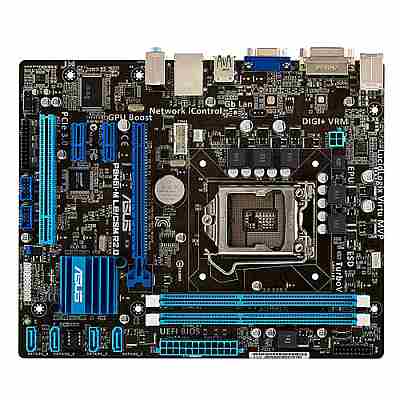

ASUS P8H61-M LE/CSM R2.0 Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI
  • 1 x D-Sub
  • 1 x LAN (RJ45) port(s)
  • 6 x USB 2.0
  • 3 x Audio jack(s)
• Internal I/O Interface:
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x COM port(s) connector(s)
  • 4 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x parallel port connector(s)
  • 1 x Front panel connector(s)
  • 1 x System panel(s)

• Special Features:
  • ASUS EPU :
    EPU
  • ASUS Digital Power Design :
    Industry leading Digital 3 + 1 + 1 Phase Power Design
    ASUS DIGI+ VRM Utility
  • TurboV
  • GPU Boost
  • ASUS Exclusive Features :
    Ai Charger
    Anti-Surge
    Low EMI Solution
    ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    Network iControl
    Disk Unlocker
  • ASUS Quiet Thermal Solution :
    Stylish Fanless Design Heat-sink solution
    ASUS Fan Xpert
  • ASUS EZ DIY :
    ASUS EZ Flash 2
    ASUS MyLogo 2
  • 100% All High-quality Conductive Polymer Capacitors

• USB Ports:
  • Intel ® H61(B3) chipset :
  • 10 x USB 2.0/1.1 port(s) (6 at back panel, black, 4 at mid-board)
• Overclocking Features:
  • Overclocking Protection :
  • ASUS C.P.R.(CPU Parameter Recall)

Motherboard Specifications

• Model:
  • ASUS P8H61-M LE/CSM R2.0 Motherboard

• CPU:
  • Intel ® Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium ® dual-core/Pentium ®/Celeron ® Processors
  • Supports Intel ® 22 nm CPU
    * The Intel ® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
• Chipset:
  • Intel ® H61(B3)
• Memory:
  • 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel ® Extreme Memory Profile (XMP)
    * 1600MHz and higher frequency is supported by Intel ® 3rd generation processors.
    * The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market.
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows ® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows ® OS when you want to install 4GB or more memory on the motherboard.
    * Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.
• Expansion Slots:
  • 1 x PCIe 3.0/2.0 x16
  • 2 x PCIe 2.0 x1
  • 1 x PCI
• On-Board Audio:
  • 3 x Audio jack(s)
• On-Board Video:
  • Integrated Graphics Processor
  • Multi-VGA output support : ports
  • Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  • Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
  • Supports Intel ® HD Graphics, Quick Sync Video

• Storage:
  • Intel ® H61(B3) chipset :
  • 4 x SATA 3Gb/s port(s), blue
• On-Board LAN:
  • Realtek ® 8111F, 1 x Gigabit LAN Controller(s)

• Accessories:
  • User's manual
  • I/O Shield
  • 2 x SATA 3Gb/s cable(s)
• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
• Support Disc:
  • Drivers
  • ASUS Utilities
  • ASUS Update
  • Anti-virus software (OEM version)
• BIOS:
  • 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information

• Form Factor:
  • M-ATX Form Factor
  • 9.6 inch x 7.8 inch ( 24.4 cm x 19.8 cm )
