• Internal I/O Interface:
  • 1 x Floppy Connector
  • 24-pin ATX power connector
  • 8-pin ATX 12V power connector
  • 1 x PCI Slot
  • 2 x Front USB
  • 6 x Fan
  • 2 x Front LAN LED

• OS Support:
  • Window Server 2003 Stndard/Web/Enterprise Edition
  • Windows.2000 Server / 2000 Advanced Server
  • Windows.XP Professional SP1
  • Windows.Server2003 Enterprise Editon
  • Windows.Server2003 Standard Edition
  • Redhat Enterprise Linux AS3.0 UP3/UP4/UP5 ; AS4.0 UP1
  • Redhat9.0
  • SuSE Linux 9.0

• Manageability:
  • ASWM2.0

• Industrial Standard:
  • US (FCC, CFR47 Part 15, Class B)
  • Europe (CE, EN55022 & EN55024)

Motherboard Specifications

• Model:

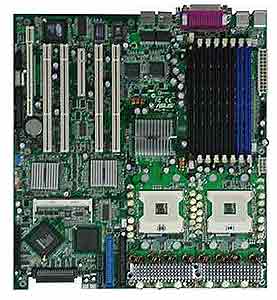

  • Asus PVL-D/SCSI

• Processor Support:
  • Dual Intel ® Xeon processors supports EM64T with 2M L2 cache 3.6+ GHz
  • Intel Dual Core Xeon - Paxville 2.8GHz is supported

• Chipset:
  • Intel ® E7520
  • Intel ®ICH5R
  • Intel ® 6700 PXH

• Memory:
  • Dual Channel DDR2 400 ECC Reg DIMM x 8
  • Maximum up to 16GB

• Expansion Slots:
  • 4 x 64bit/ 133 MHz PCI-X
  • 1 x 32bit/ 33MHz PCI
  • 1x PCI-E x 8 slot

• On-Board Video:
  • ATI ® RAGE-XL / 8MB

• On-Board LAN:
  • 2 x Broadcom ® BCM5721PCI-E Gigabit LAN

• Storage:
  • SCSI: AIC-7902 PCI-X Dual U320 SCSI
  • SATA: Intel ® ICH5R, 2 ports
  • Dual Channel IDE support UltraATA 33 / 66 / 100 /133

• Rear Panel I/O Ports:
  • 1 x External Serial Port
  • 2 x External USB Port
  • 1 x VGA Port
  • 2 x RJ-45
  • PS/2 Mouse/Mouse

• Form Factor:
  • 12" x 13"
  • EEB 3.51 compliant
