Biostar 945GC-M7 TE

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x VGA Port
  • 1 x Serial Ports
  • 1 set 5.1 channel Audio Jack (3 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Audio:
  • Realtek ALC662 6-Channel HD Audio
  • 2/4/5.1
  • Compliant with HD specification


• Form Factor:
  • Micro-ATX Form Factor
  • 19 cm X 23.9cm

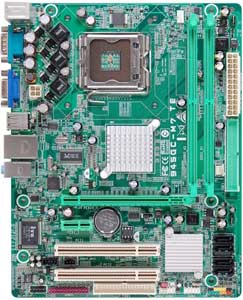

Biostar 945GC-M7 TE Motherboard

• Model:
  • Biostar 945GC-M7 TE Motherboard

• Processor Support:
  • Supports Intel ® Core2 Duo / Pentium ® D/Pentium ® 4/Celeron ® 400 Series/Celeron ® D Processor
  • Supports Intel Hyper-Threading Technology
  • Socket LGA 775


• FSB:
  • 533/800/1066/1333MHz


• Chipset:
  • Intel 945GC

• Memory:
  • Support Dual Channel DDR2 400/533/667 MHz
  • 2 x DDR2 DIMM Memory Slot
  • Max. Supports up to 4GB Memory


• Expansion Slots:
  • 1 x PCI-E x16
  • 1 x PCI-E x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA2 3b/s


• Video:
  • Intel Graphics Media Accelerator 950, On Board Graphic
  • Max Memory Share upto 224MB


• On-Board LAN:
  • Atheros L2
  • 10/100 Controller


• Power Connector :
  • 1 x 24pin main power
  • 1x 4pin CPU power


• BIOS:
  • Award BIOS with 4Mb Flash ROM
  • Supports Plug and Play, STR/STD
  • Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 1.0 specification
