B75MU3+

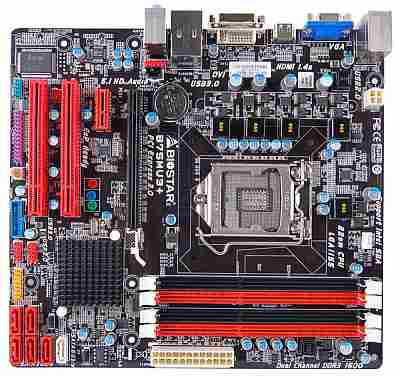

BIOSTAR B75MU3+ Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 Mouse
  • 2 x USB 3.0 Port
  • 2 x USB 2.0 Port
  • 1 x HDMI Connector
  • 1 x DVI Connector
  • 1 x VGA Port
  • 1 x RJ-45 Port
  • 3 x Audio Connector
• Internal I/O Interface:
  • 1 x Printer Header
  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Header
  • 1 x SATA3 6Gb/s Connector
  • 5 x SATA2 3Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x S/PDIF-OUT Header
  • 1 x CPU FAN Header
  • 1 x System FAN Header
  • 1 x Serial Header
  • 1 x CIR Header

• USB Ports:
  • 2 x USB 3.0 Port
  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Port
  • 2 x USB 2.0 Header
  • Intel USB3.0 only support Win7 or later version
• Accessories:
  • 2 x SATA Cable
  • 1 x I/O Shield
  • 1 x DVD Driver
  • 1 x Quick Guide

Motherboard Specifications

• Model:
  • BIOSTAR B75MU3+ Motherboard

• CPU:
  • Intel ® Core i7 LGA 1155 Processor
  • Intel ® Core i5 LGA 1155 Processor
  • Intel ® Core i3 LGA 1155 Processor
  • Intel ® Pentium ® LGA 1155 Processor
  • Maximum CPU TDP (Thermal Design Power) : 95Watt
• Chipset:
  • Intel B75
• Memory:
  • Support Dual Channel DDR3 1600/1333/1066 MHz
  • 4 x DDR3 DIMM Memory Slot
  • Max. Supports up to 32GB Memory
• Expansion Slots:
  • 1 x PCI-E x16 3.0 Slot (supported by Core i5 -3xxx / Core i7 3xxx CPU)
  • 1 x PCI-E x1 2.0 Slot
  • 2 x PCI Slots
• On-Board Audio:
  • Realtek ALC662 6-Channel HD Audio
• On-Board Video:
  • By CPU model
  • Supports DX11
  • Supports HDCP
  • VGA Port
  • DVI Port
  • HDMI Port
• Storage:
  • 1 x SATA3 Connector
  • 5 x SATA2 Connector
• Special Features:
  • Windows 8 Ready
  • Supports BIO-Remote2
  • Supports BIO-Remote
  • Supports 100% Solid capacitor
  • Supports Charger Booster
  • Supports BIOS Online Update
• On-Board LAN:
  • Realtek RTL8111F - 10/100/1000 Controller
• OS SUPPORT:
  • Support Windows XP / Vista / 7 / 8
• Form Factor:
  • Micro ATX Form Factor
  • Dimension: 24.4cm x 22cm ( W x L ) (9.6 Inch x 8.7 Inch)
