• Storage:
  • Dual-channel master mode
  • Up to four Enhanced IDE devices
  • Support for ATA-100/66/33 IDE and ATAPI-compliant devices
• Rear Panel I/O Ports:
  • One serial port and one VGA port
  • Stacked USB (two) ports
  • Stacked keyboard and mouse ports
  • Side-by-side LAN (two) ports
• Internal I/O Interface:
  • One floppy connector supports up to two drives: microfloppy support via optional cable
  • Two USB (Via Cable)
  • one 25-pin SPP/ECP/EPP parallel port via optional cable
  • One 9-pin 16550-based serial ports
• Integrated IDE RAID:
  • Promise FastTrak100 IDE RAID controller
  • Dual-channel master mode
  • Support up to four Enhanced IDE devices
  • Support for UDMA 100/66/33 IDE drives
  • Supports IDE RAID levels 0, 1 and 0+1
• Hardware Monitoring:
  • Winbond W83782D hardware monitoring ASIC
  • 2-pin chassis intrusion header
  • CPU temperature and voltage monitoring
• Integrated Video:
  • ATI RAGE XL graphics controller
  • 4MB frame buffer (SDRAM)
  • Standard 15-pin analog VGA port

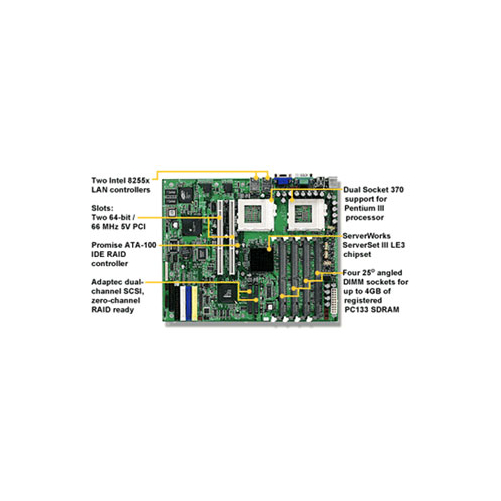

Motherboard Specifications

• Model:
  • Thunder LE-T (S2518GNR) Motherboard
• Processor Support:
  • Dual PGA370ZIF sockets
  • Supports up to 2 Intel Prntium III processors (FC-PGA)
  • Two onboard VRMs (VRM 8.4 spec)
• Chipset:
  • ServerWorks ServerSet III LE3 chipset
  • Integrated I/O APIC OSB4 south bridge
  • SMsC FDC37B787 Super I/O ASIC
• FSB:
  • 100MHz and 133MHz
• Memory:
  • Four 25 ° angled 3.3v 168-pin DIMM sockets
  • Angled sockets enable rackmount installation
  • Up to 4GB PC133 Registered SDRAM
  • Support for ECC (72-bit) memory modules
• Expansion Slots:
  • One 64-bit 66MHz (3.3-volt) PCI slot and one 64-bit 66MHz (5-volt) PCI slot.
  • 3.3-volt slot supports Adaptec 2000S Zero-channel RAID controller
  • Total of two usable slots (one if installed in 1U)
  • PCI riser card required when installed in 1U/2U
• Regulatory:
  • FCC DoC (Declaration of Conformity)
  • European CE (Declaration of Conformity)
• Integrated LAN Controllers:
  • Dual LAN controllers (Intel ® 82559)
  • 10/100Mbps data transfer rate per controller
• BIOS:
  • AMI BIOS on 4Mb Flash ROM
  • User settings for hardware monitoring
  • Auto configuration of IDE hard disk types
  • DMI 2.0 compliant
  • Multiple boot options
• Form Factor:
  • ATX footprint (12" x 9.6", 304.8mm x 243.84mm)
  • One 20-pin ATX power connector
