Biostar TA970XE

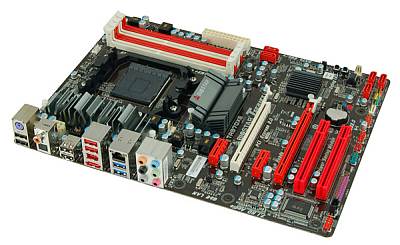

BIOSTAR TA970XE Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x eSATA Connector
  • 1 x FireWire IEEE 1394a Port
  • 2 x USB 3.0 Port
  • 6 x USB 2.0 Port
  • 1 x RJ-45 Port
  • 6 x Audio Connector
  • 1 x S/PDIF Out Port
• Internal I/O Interface:
  • 1 x Printer Header
  • 2 x USB 2.0 Header
  • 5 x SATA3 6Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x S/PDIF-OUT Header
  • 1 x CPU FAN Header
  • 2 x System FAN Header
  • 1 x Serial Header
  • 1 x FireWire IEEE 1394 Header
  • 1 x CIR Header

• USB Ports:
  • ASMedia ASM1042 USB 3.0 controller
  • 2 x USB 3.0 Port
  • 6 x USB 2.0 Port
  • 2 x USB 2.0 Header
• On-Board LAN:
  • Realtek RTL8111E - 10/100/1000 Controller

• IEEE 1394:
  • VIA VT6315N
  • 1 x IEEE 1394a Port
  • 1 x IEEE 1394a Header
• OS SUPPORT:
  • Support Windows XP / Vista / 7 / 8

Motherboard Specifications

• Model:
  • BIOSTAR TA970XE Motherboard

• CPU:
  • AMD FX Processor
  • AMD Phenom II X6 Processor
  • AMD Phenom II X4 Processor
  • AMD Phenom II X3 Processor
  • AMD Phenom II X2 Processor
  • AMD Athlon II X4 Processor
  • AMD Athlon II X3 Processor
  • AMD Athlon II X2 Processor
  • AMD Sempron Processor
  • Maximum CPU TDP (Thermal Design Power) : 140Watt
• HT:
  • Support HT 5.2G
• Chipset:
  • AMD 970 / SB950
• Memory:
  • Support Dual Channel DDR3 2000(OC)/1866/1600/1333/1066/800 MHz
  • 4 x DDR3 DIMM Memory Slot
  • Max. Supports up to 32GB Memory
• Expansion Slots:
  • 2 x PCI-E x16 2.0 Slot (x16, x4)
  • 2 x PCI-E x1 2.0 Slot
  • 2 x PCI Slots
• On-Board Audio:
  • Realtek ALC892 8-Channel Blu-ray Audio
• Multi-Graphics Support:
  • AMD CrossFireX
• Storage:
  • 5 x SATA3 Connector
  • 1 x eSATA Connector
  • Support SATA RAID: 0,1,5,10
• Special Features:
  • Windows 8 Ready
  • Supports uEFI GUI Interface BIOS
  • Supports BIO-Remote2
  • Supports BIO-Remote
  • Supports AOD ACC
  • Supports 100% Solid capacitor
  • Supports Puro Tone HD Audio Technology
  • Supports Rapid Debug
  • Supports BIOS-Flasher
  • Supports Toverclcoker OC software
  • Supports GPU
  • Supports Charger Booster
  • Supports BIOS Online Update
• Accessories:
  • 4 x SATA Cable
  • 1 x I/O Shield
  • 1 x CD Driver
  • 1 x User Manual
• Form Factor:
  • ATX Form Factor
  • Dimension: 30.5cm x 22.5cm ( W x L ) (12 Inch x 8.6 Inch)
