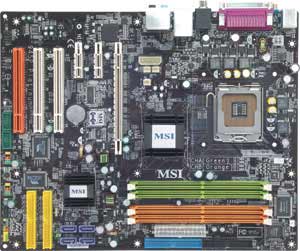

Microstar / MSI 945P Platinum

• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications

• Form Factor:
  • 12in.(L) x 9.65in.(W)
  • ATX Form Factor

MSI  945P Platinum Specifications

• Model:
  • MSI 945P Platinum

• Processor Support:
  • Supports Socket 775 for Intel Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE/Celeron D processors in LGA 775 package
  • Supports up to Pentium 4 5XX and Celeron D 3XX sequence processor
  • Supoprts Intel 05B and 05A processors
  • Supoprts EIST techonology
  • Supports Intel Hyper-Threading (HT) Technology
  • Supports Intel Dual Core Technology to 800MHz and up

• FSB:
  • Support FSB 533/800/1066MHz

• Chipset:
  • Intel ® 945P Chipset
  • Intel ® ICH7R Chipset

• Memory:
  • Supports 4 unbuffered DIMM of 1.8 Volt DDR2 SDRAM
  • Supports up to 4GB memory size
  • Support Dual Channel DDR2 667/533/400MHz and up(*DR2 Memory Modules are not the same as DDR Memory Module, please check your memory vendor for more information)

• Expansion Slots:
  • One PCI Express 16X slot
  • Two PCI Express 1X slot
  • Three PCI 2.2 32-bit Master PCI Bus slots. (support 3.3v/5v PCI bus interface)

• On-Board Audio:
  • High Definition link controller integrated in Intel ICH7R chip

• On-Board LAN:
  • Realtek RTL 8882
  • Supports 10/100/1000 Mb/s
  • Compliane with PCI 2.2
  • Supports ACPI Power Management
