TP67XE

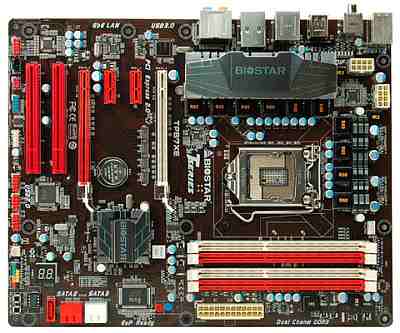

BIOSTAR TP67XE Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x eSATA2 Connector
  • 1 x FireWire IEEE 1394a Port
  • 2 x USB 3.0 Port
  • 6 x USB 2.0 Port
  • 1 x RJ-45 Port
  • 6 x Audio Connector
  • 1 x S/PDIF Out Port
• Internal I/O Interface:
  • 3 x USB 2.0 Header
  • 2 x SATA3 6Gb/s Connector
  • 3 x SATA2 3Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x S/PDIF-OUT Header
  • 1 x CPU FAN Header
  • 2 x System FAN Header
  • 1 x Serial Header
  • 1 x FireWire IEEE 1394 Header
  • 1 x CIR Header

• USB Ports:
  • 2 x USB 3.0 Port
  • 6 x USB 2.0 Port
  • 3 x USB 2.0 Header
• Accessories:
  • 3 x SATA Cable
  • 1 x SATA Power Cable
  • 1 x SLI Connector
  • 1 x CrossFire Connector
  • 1 x I/O Shield
  • 1 x CD Driver
  • 1 x User Manual
• On-Board LAN:
  • Realtek RTL8111E - 10/100/1000 Controller

Motherboard Specifications

• Model:
  • BIOSTAR TP67XE Motherboard

• CPU:
  • Intel ® Core i7 LGA 1155 Processor
  • Intel ® Core i5 LGA 1155 Processor
  • Intel ® Core i3 LGA 1155 Processor
• Chipset:
  • Intel P67
• Memory:
  • Support Dual Channel DDR3 2200(OC)/2133(OC)/2000(OC)/1600(OC)/1333/1066 MHz
  • 4 x DDR3 DIMM Memory Slot
  • Max. Supports up to 32GB Memory
  • It is recommended to install memory module on the red DDR3 DIMM slot (DDR3_A2 or DDR3_B2) to boot the system.
• Expansion Slots:
  • 2 x PCI-E x16 2.0 Slot (CFX x8)
  • 2 x PCI-E x1 2.0 Slot
  • 2 x PCI Slots
• On-Board Audio:
  • Realtek ALC892 8-Channel Blu-ray Audio
• Storage:
  • 2 x SATA3 Connector
  • 3 x SATA2 Connector
  • 1 x eSATA2 Connector
  • Support SATA RAID: 0,1,5,10
• Special Features:
  • Windows 8 Ready
  • Supports uEFI GUI Interface BIOS
  • B3 bug free
  • Supports THX TruStudio Pro
  • Supports BIO-Remote2
  • Supports BIO-Remote
  • Supports 100% Solid capacitor
  • Supports Rapid Switch
  • Supports Rapid Debug
  • Supports Toverclcoker OC software
  • Supports GPU
  • Supports Charger Booster
  • Supports BIOS Online Update
• IEEE 1394:
  • VIA VT6315N
  • 1 x IEEE 1394a Port
  • 1 x IEEE 1394a Header
• OS SUPPORT:
  • Support Windows XP / Vista / 7 / 8
• Form Factor:
  • ATX Form Factor
  • Dimension: 30.5 cm X 24.4 cm ( W x L ) (12 Inch x 9.6 Inch)
