217155-002 FIC AZ31 Uwave motherboard

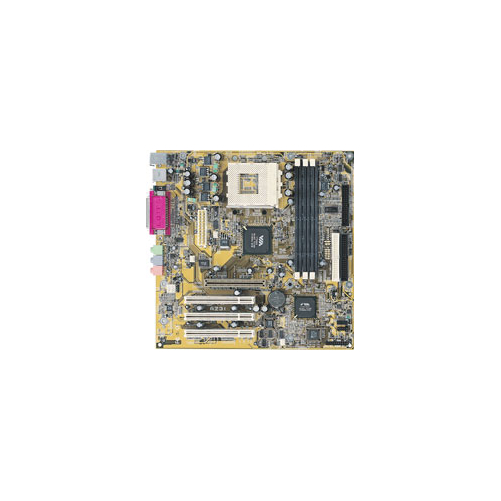

Motherboard Image

Motherboard Specifications

Primarily used in Compaq Desktops. Compaq Part # 217155-001 or 217155-002. Also called Compaq Uwave motherboard.

• MOTHERBOARD MODEL: FIC AZ31
• CPU SUPPORT:
  AMD Duron Socket A 600~750MHz@200MHz FSB
  AMD Athlon Socket A 700MHz~1GHz@200MHz FSB
• CHIPSET:
  VIA Apollo KT133A & 686A
• SYSTEM MEMORY:
  3 DIMM; up to 1.5GB PC133 SDRAM
• EXPANSIONS SLOTS:
  1 x AGP
  3   32-bit Master PCI bus slots
• I/O:
  2 serial ports, 1 parallel port
• ON BOARD AUDIO:
  Integrated audio in the VIA 686A
• ON BOARD IDE:
  Ultra DMA 33/66; DMA Mode 2/4 support
• DIMENSIONS:
  microATX Form Factor: 9.6" x 9.5"
• BIOS:
  ACPI 1.0B, APM 1.2, PnP 1.0a, SMBIOS 2.3, DMI 2.0, WfM2.0,
  Smart for HDD, USB 1.1, PC99, PCI 2.2
