• Internal I/O Interface:
  • 1 connector for 2 additional external USB 2.0/1.1 ports
  • 1 connector for 1 external IEEE 1394 port
  • 1 connector for 1 external serial port
  • 1 connector for the Karajan audio module
  • 1 front audio connector for external line-out and mic-in jacks (on the Karajan audio module)
  • 1 CD-in internal audio connector (on the Karajan audio module)
  • 1 S/PDIF connector for optical cable connection
  • 1 IrDA connector
  • 1 CIR connector
  • 1 90o floppy connector
  • 1 24-pin ATX power connector
  • 1 8-pin ATX 12V power connector
  • 1 4-pin 5V/12V power connector (FDD type)
  • 1 front panel connector
  • 5 fan connectors
  • 1 Debug LED
  • EZ touch switches (power switch and reset switch)

• BIOS:
  • Award BIOS
  • CMOS Reloaded
  • CPU/DRAM overclocking
  • CPU/DRAM/Chipset overvoltage
  • 4Mbit flash memory

• Hardware Monitoring:
  • Monitors CPU/system/chipset temperature
  • Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vdimm/Vchip voltages
  • Monitors the speed of the cooling fan
  • CPU Overheat Protection function monitors CPU temperature during system boot-up

• Manageability:
  • ACPI and OS Directed Power Management
  • ACPI STR (Suspend to RAM) function
  • Wake-On-PS/2 Keyboard/Mouse
  • Wake-On-USB Keyboard/Mouse
  • Wake-On-Ring
  • Wake-On-LAN
  • RTC timer to power-on the system
  • AC power failure recovery

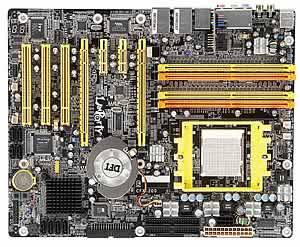

Motherboard Specifications

• Model:
  • DFI LANPARTY UT CFX3200-DR/G

• Processor Support:
  • Socket 939
  • AMD Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron

• Chipset:
  • North bridge: ATI CrossFire CFX3200

• FSB:
  • 2000MT/s HyperTransport interface

• Memory:
  • Four 184-pin DDR SDRAM DIMM sockets
  • Supports dual channel (128-bit wide) memory interface
  • Supports up to 4GB system memory
  • Supports PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) DDR SDRAM DIMM

• Expansion Slots:
  • 2 PCI Express x16 slots (ATI CrossFire ready)
  • 2 PCI Express x1 slots
  • 3 PCI slots

• On-Board Audio:
  • Karajan audio module
  • Realtek ALC882 8-channel High Definition Audio CODEC
  • 6 audio jacks
  • 1 CD-in connector
  • 1 front audio connector
  • S/PDIF-in/out interface

• On-Board LAN:
  • Dual Gigabit LAN - Marvell 88E8052 and Marvell 88E8053 Gigabit PCI LAN

• Storage:
  • 2 x IDE (up to four devices)
  • ULI M1575 chip:  4 x SATA-II; RAID 0, RAID 1, RAID 0+1 and JBOD
  • Silicon Image Sil 3114 chip: 4 x SATA-II; RAID 0, RAID 1, RAID 0+1 and RAID 5

• Rear Panel I/O Ports:
  • 1 mini-DIN-6 PS/2 mouse port
  • 1 mini-DIN-6 PS/2 keyboard port
  • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
  • Karajan audio module (6 audio jacks)
  • 1 IEEE 1394 port
  • 2 RJ45 LAN ports
  • 6 USB 2.0/1.1 ports

• Form Factor:
  • ATX form factor
  • 24cm (9.45") x 30.5cm (12")
