S1833D Tiger 100 Intel 440BX chipset Dual Pentium II 100MHz SDRAM Support 4PCI 2ISA 1AGP 4DIMM sockets. Version B

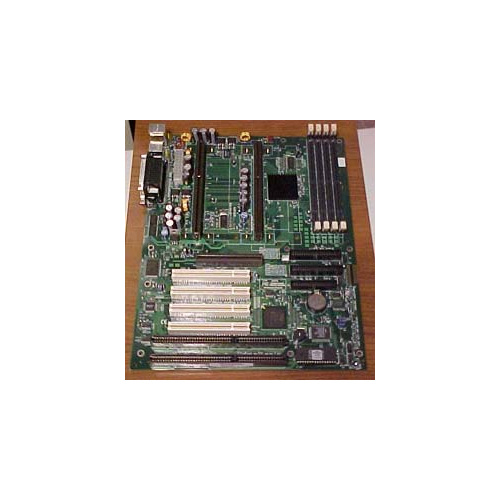

Tyan S1833D Tiger 100 Motherboard

• Storage:
  • Two UltraDMA/33 PCI Bus-Master EIDE Ports
  • Bus-Mastering Mode 2 (Up to 22MB/sec DTR)
  • PIO Mode 3 & 4 (Up to 17MB/sec DTR)
  • Supports EIDE CD-ROMs
• Expansion Slots:
  • Four 32-bit PCI Bus Mastering Slots
  • Two 16-bit ISA Slots
  • One 32-bit AGP Slot
  • One Shared PCI/ISA Slot
• Internal I/O Interface:
  • Two Floppy Drive Support (Up to 2.88MB)
  • Japanese Mode 3 Floppy Suppor
  • Two ATX Style 16550 High Speed Serial Ports
  • One ATX Style ECP/EPP High Speed Parallel Port
  • One IR (InfraRed) Port
  • 2 High Speed Serial Ports (16550 UART Compatible)
  • Wake on LAN / Wake on Ring headers

Motherboard Specifications

• Model:
  • Tyan S1833D Tiger 100 dual slot 1 motherboard
• Processor Support:
  • Single or Dual Pentium II / III up to 500 Mhz
  • Slot 1
• FSB:
  • Up to 100MHz BUS Support
• Chipset:
  • Intel 440BX (100MHz AGP set)
  • National "309" Super I/O Chipset
  • Latest Generation Pentium ® II Chipset
• Memory:
  • Up to 1GB Memory Support (3.3V only)
  • Synchronous DRAM W/SPD
  • SDRAM + ECC
  • Four 168-pin DIMM Sockets
  • 100MHz SDRAM support
• BIOS:
  • AMI Plug 'n' Play 2Mb flash BIOS Standard
  • Deep Green / Energy Star / PC97 compliant
  • Yellow LED for Sleep mode
  • Year 2000 compliant
• Rear Panel I/O Ports:
  • One ATX PS/2 Mouse Port
  • 2 ATX USB Ports Rev 1.2
  • One ATX PS/2 Keyboard Port
• Form Factor:
  • ATX (10" x 12.0")
  • Double Row ATX Connectors
  • 2 On-board Case Fan Headers
  • 2 VRM components installed on board
