• Rear Panel I/O Ports:
  • 1 mini-DIN-6 PS/2 mouse port
  • 1 mini-DIN-6 PS/2 keyboard port
  • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
  • Karajan audio module (6 audio jacks)
  • 1 IEEE 1394 port
  • 2 RJ45 LAN ports
  • 6 USB 2.0/1.1 ports

• Internal I/O Interface:
  • 2 connectors for 4 additional external USB 2.0/1.1 ports
  • 1 connector for 1 external IEEE 1394 port
  •  connector for 1 external serial port
  • 1 connector for the Karajan audio module
  • 1 front audio connector for external line-out and mic-in jacks (on the Karajan audio module)
  • 1 CD-in internal audio connector (on the Karajan audio module)
  • 1 S/PDIF connector for optical cable connection
  • 1 IrDA connector
  • 1 CIR connector
  • 1 floppy connector
  • 1 24-pin ATX power connector
  • 1 8-pin ATX 12V power connector
  • 1 4-pin 5V/12V power connector (FDD type)
  • 1 front panel connector
  • 5 fan connectors
  • 1 Debug LED
  • EZ touch switches (power switch and reset switch)

• BIOS:
  • Award BIOS
  • CMOS Reloaded
  • CPU/DRAM overclocking
  • CPU/DRAM/Chipset overvoltage
  • 4Mbit flash memory

• Hardware Monitoring:
  • Monitors CPU/system/chipset temperature
  • Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vdimm/Vchip voltages
  • Monitors the speed of the cooling fans
  • CPU Overheat Protection function monitors CPU temperature during system boot-up

• Manageability:
  • ACPI and OS Directed Power Management
  • ACPI STR (Suspend to RAM) function
  • Wake-On-PS/2 Keyboard/Mouse
  • Wake-On-LAN
  • RTC timer to power-on the system
  • AC power failure recovery

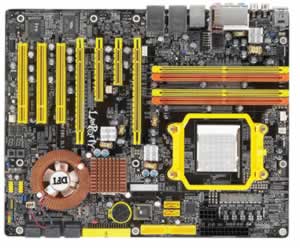

Motherboard Specifications

• Model:
  • DFI LANPARTY UT NF590 SLI-M2R/G

• Processor Support:
  • Socket AM2
  • AMD ® Athlon 64 FX / Athlon 64 X2 / Athlon 64

• Chipset:
  • NVIDIA nForce ® 590 SLI MCP
  • Northbridge: NVIDIA ® C51XE
  • Southbridge: NVIDIA ® MCP55PXE

• FSB:
  • 2000MT/s HyperTransport interface

• Memory:
  • Four 240-pin DDR2 DIMM sockets
  • Supports DDR2 533, DDR2 667 and DDR2 800 DIMMs
  • Supports dual channel (128-bit wide) memory interface
  • Supports up to 4GB system memory

• Expansion Slots:
  • 2 PCI Express x16 slots. In SLI or Normal mode, each slot operates at full speed x16 lanes. Use identical SLI-ready PCI Express x16 graphics cards
  • 1 PCI Express x1 slot
  • 1 PCI Express x8 slot
  • 3 PCI slots

• On-Board Audio:
  • Karajan audio module: Realtek ALC885 8-channel High Definition Audio CODEC; 6 audio jacks; 1 CD-in connector; 1 front audio connector
  • DAC SNR/ADC SNR of 106dB/101dB
  • Full-rate lossless content protection technology
  • S/PDIF-in/out interface

• On-Board LAN:
  • 2 Vitesse VSC8601 Gigabit Phy chips

• Storage:
  • One IDE connector allows connecting up to two UltraDMA 133Mbps hard drives
  • Six Serial ATA ports supported by NVIDIA ® MCP55PXE: SATA speed up to 3Gb/s; RAID 0, RAID 1, RAID 0+1 and RAID 5
  • Two Serial ATA ports supported by Silicon Image SiI 3132: SATA speed up to 3Gb/s; RAID 0, RAID 1 and RAID 0+1

• Form Factor:
  • ATX form factor
  •  24cm (9.45") x 30.5cm (12")
