• Internal I/O Interface:
  • 1 connector for 1 external IEEE 1394 port
  • 1 front audio connector for external line-out and mic-in jacks
  • 1 CD-in internal audio connector
  • 1 S/PDIF connector for optical cable connection
  • 1 IrDA connector
  • 4 Serial ATA connectors
  • 2 IDE connectors
  • 1 90 floppy connector
  • 1 24-pin ATX power connector
  • 1 4-pin ATX 12V power connector
  • 1 4-pin 5V/12V power connector (FDD type)
  • 1 front panel connector
  • 5 fan connectors
  • EZ touch switches (power switch and reset switch)

• BIOS:
  • Award BIOS
  • CPU/DRAM overclocking
  • CPU/DRAM/Chipset overvoltage
  • 4Mbit flash memory

• Hardware Monitoring:
  • Monitors CPU/system/chipset temperature
  • Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vdimm/Vchip voltages
  • Monitors the speed of the cooling fans
  • CPU Overheat Protection function monitors CPU temperature during system boot-up

• Manageability:
  • ACPI and OS Directed Power Management
  • ACPI STR (Suspend to RAM) function
  • Wake-On-PS/2 Keyboard/Mouse
  • Wake-On-USB Keyboard/Mouse
  • Wake-On-LAN
  • Wake-On-Ring
  • RTC timer to power-on the system

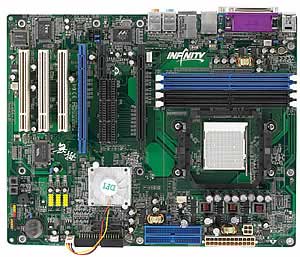

Motherboard Specifications

• Model:
  • DFI INFINITY NFII-M2

• Processor Support:
  • Socket AM2
  • AMD Athlon 64 X2/ Athlon 64 FX/ Athlon 64/ Sempron

• Chipset:
  • nVidia nForce4 Ultra

• FSB:
  • 2000MT/s HyperTransport interface

• Memory:
  • 4x 240pin DIMMs support Dual Channel DDR2 667/533 Memory
  • Max capacity 4GB

• Expansion Slots:
  • 2 x PCI Express x16 slots (Support nVidia SLI Technology)
  • 1 x PCI Express x1 slot
  • 3 x PCI slots

• On-Board Audio:
  • Realtek ALC850 8-channel AC'97 audio CODEC

• On-Board LAN:
  • Marvell 88E1115 Gigabit LAN

• Storage:
  • 2 x ATA-133 channel
  • 4 x SATA ports
  • nVidia RAID allows RAID arrays spanning across Serial ATA and Parallel ATA
  • Support RAID 0, 1, 0+1 and JBOD

• Rear Panel I/O Ports:
  • 1 mini-DIN-6 PS/2 mouse port
  • 1 mini-DIN-6 PS/2 keyboard por
  • 1 optical S/PDIF-out
  • 1 RCA S/PDIF-out
  • 1 parallel port
  • 1 COM port
  • 1 IEEE 1394 port
  • 1 RJ45 LAN port
  • 4 USB 2.0/1.1 ports
  • Center/subwoofer, rear R/L and side R/L jacks
  • Line-in, line-out (front R/L) and mic-in jacks

• Form Factor:
  • ATX form factor
  • 24cm (9.45") x 30.5cm (12")
