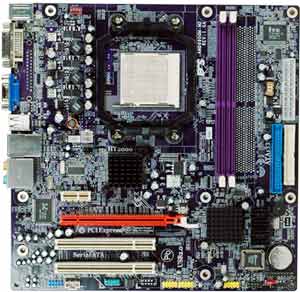

ECS AMD690GM-M2 (V1.0A) Motherboard
Supports AMD Athlon 64 X2 Dual Core/ Athlon 64 / Sempron in the Socket AM2, AMD® 690G chipset, 1 x PCIe x16, 1 x PCIe x1, 2 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Video (VGA & DVI), Audio, SPDIF, Micro-ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 3 x USB 2.0/1.1 headers
- 1 x COM1 header
- 1 x SPDIF out header
- 1 x TV out header
- 4 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x VGA port
- 1 x DVI connector
- 1 set 7.1 channel Audio Jack (6 jacks)
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- Video:
- ATI AMD690G-based with 2D/3D Acceleration Features
- Share Memory: Maximum up to 512MB
|
ECS AMD690GM-M2 (V1.0A) Motherboard
- Model:
- ECS AMD690GM-M2 (V1.0A) Motherboard
- Processor Support:
- Supports AMD Athlon 64 X2 Dual Core/ Athlon 64 / Sempron processor
- Socket AM2
- FSB:
- Chipset:
- Memory:
- Dual-channel DDR2 memory architecture
- 2 x 240-pin DDR2 DIMM socket support up to 16GB
- Support DDR2 800/667/533/400 DDR2 SDRAM
- Expansion Slots:
- 1 x PCIe x16
- 1 x PCI Express x1 slot
- 2 x PCI 32bit/33MHz slots
- Storage:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 4 x SATA ports 300
- Support RAID0, RAID1, RAID10 configuration
- Audio:
- Realtek ALC883 support 8-ch HD Audio
- 2/4/5.1/7.1
- Compliant with HD specification
- On-Board LAN:
- Realtek RTL8110SC Giga LAN Controller
- BIOS:
- Award BIOS with 4Mb Flash ROM
- Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
- Supports ACPI revision 1.0 specification
- Form Factor:
- Micro-ATX Form Factor, 244mm x 244mm
|
