ECS NF650I SLIT-A

Name: ECS NF650I SLIT-A
Brand: ECS
SKU: 110277
Price: 112.97 USD
Availability: OutOfStock

Part # 110277

Condition : New- Retail Box

| Warranty: 365 days

Brand : ECS

| Log in to add review

Rate this product:

Quantity: Out of Stock

Out of Stock: Don’t worry—click “Notify Me” and we’ll email you as soon as it’s back.

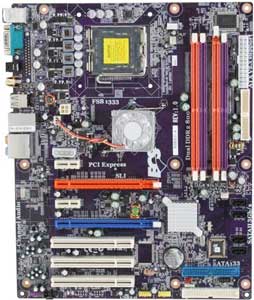

ECS NF650i SLIT-A (V1.0)Motherboard

Supports Intel® Core2 Quad / Core 2 Extreme / Core 2 Duo / Pentium D / Celeron Processors in the Socket LGA775, NVIDIA nForce 650i SLI chipset, 2 x PCI Express x16 slot (SLI mode: 8X, 8X), 2 x PCIe x1, 3 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Audio, SPDIF, ATX Form Factor

ECS NF650i SLIT-A (V1.0) Motherboard, Supports Intel® Core2 Quad / Core 2 Extreme / Core 2 Duo / Pentium D / Celeron Processors in the Socket LGA775, NVIDIA nForce 650i SLI chipset, 2 x PCI Express x16 slot (SLI mode: 8X, 8X), 2 x PCIe x1, 2 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Audio, SPDIF, ATX Form Factor

Internal I/O Interface:
- 1 x Floppy connector
- 2 x USB 2.0/1.1 headers
- 1 x COM1 header
- 1 x SPDIF out header
- 4 x SATA2 ports
- 2 x IDE Port

Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 2 x SPDIF (Optical & Coaxial) out
- 1 x Serial port (COM1)
- 1 set 7.1 channel Audio Jack (6 jacks)
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
Audio:
- Realtek ALC883 8-channel audio CODEC
- 2/4/5.1/7.1
- Compliant with HD specification

ECS NF650i SLIT-A (V1.0)Motherboard

Model:
- ECS NF650i SLIT-A (V1.0)Motherboard

Processor Support:
- Supports Supports Intel® Core2 Quad / Core 2 Extreme / Core 2 Duo /Pentium 4 / Pentium D /Celeron D Processor
- Support Hyper-Threading Technology
- Socket LGA 775
FSB:
- 1333/1066/800 MHz
Chipset:
- NVIDIA nForce 680i SLI

Memory:
- Dual-channel DDR2 memory architecture
- 4 x 240-pin DDR2 DIMM socket support up to 8 GB
- Support DDR2 800/667/533/400 DDR2 SDRAM
Expansion Slots:
- 2 x PCI Express x16 slot (SLI mode: 8X, 8X)
- 2 x PCI Express x1 slot
- 3 x PCI 32bit/33MHz slots
Storage:
- Support by NVIDIA MCP51
- 2 x IDE connector supporting ATA-133/100/66/33 and up to 4 IDE devices
- 4 x Serial ATAII 3.0Gb/s devices
- NVIDIA MediaShield RAID supports RAID 0, 1, 0+1, 5 and JBOD
On-Board LAN:
- Marvell 88E1116 Gigabit Fast Ethernet PHY
BIOS:
- Award BIOS with 4Mb Flash ROM
- Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
- Supports ACPI revision 2.0 specification
Form Factor:
- ATX Form Factor, 305mm x 244mm
