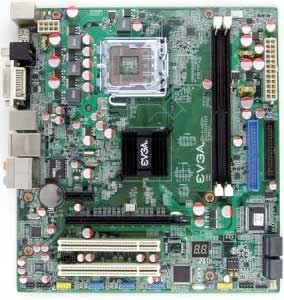

EVGA 112-CK-NF72-K1 Motherboard
Supports Intel ® Core2 Quad, Core2 Extreme, Core2 Duo, Pentium ® EE, Pentium ® D, Pentium ® 4, Celeron ® D processors in the LGA 775 package, nVidia GeForce 7050 chipset, 1 x PCIe x16, 1 x PCIe x1, 2 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Video, Audio, SPDIF, Micro-ATX Form Factor |
|
- Internal I/O Interface:
- 4 x USB 2.0/1.1 headers
- 1x Floppy connector
- 1 x COM header
- 4 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 set 7.1 channel audio jacks (6 jacks)
- 1x VGA connector
- 1x S/PDIF Out
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- Key Features :
- NVIDIA RAID
- NVIDIA StreamThru Data Transport System
- NVIDIA nTune Performance Application
- NVIDIA Firewall Technology
- NVIDIA ForceWare Unified Software Environment (USE)
- Unified Driver Architecture (UDA)
|
EVGA
112-CK-NF72-K1
Motherboard
- Model:
- EVGA
112-CK-NF72-K1
Motherboard
- Processor Support:
- Supports Intel ® Core2 Quad, Core2 Extreme, Core2 Duo, Pentium ® EE, Pentium ® D, Pentium ® 4, Celeron ® D processors
- Socket LGA 775
- FSB:
- Chipset:
- Memory:
- 2 x 240-pin DIMM sockets
- Single Channel DDR2
- Maximum of 4GB of DDR2 533/667 Mhz
- Expansion Slots:
- 1 x PCIe x16
- 1 x PCIe x1
- 2 x PCI 2 x 32-bit PCI, support for PCI 2.1
- Storage:
- 1 x ATA 133
- 4 x SATA2 ports 300MB/sec
- Support for RAID 0, RAID1
- Audio:
- 7.1 Channel, Azalia (HDA)
- 2/4/5.1/7.1
- Support for CD In
- On-Board LAN:
- NVIDIA Native Gigabit Ethernet
- Video:
- nVidia GeForce 7050 Graphic Controller
- BIOS:
- Dynamic BIOS Access
- Update from Windows
- Form Factor:
- Micro-ATX Form Factor,
- 9.5 x 8.5 inch
|
