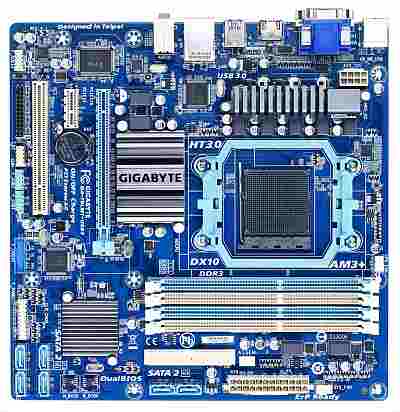

Gigabyte GA-78LMT-USB3 Motherboard

• Storage:
  • South Bridge:
    1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
    Support for RAID 0, RAID 1, RAID 10, and JBOD

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 2 x USB 3.0/2.0 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks (Line In/Line Out/Microphone)

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 3Gb/s connectors
  • 1 x IDE connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.0/2.0 header
  • 2 x USB 2.0/1.1 headers
  • 1 x serial port header
  • 1 x parallel port
  • 1 x clearing CMOS jumper

• Hardware Monitoring:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU overheating warning
  • CPU/System fan fail warning
  • CPU/System fan speed control (Note 5)

• I/O Controller:
  • iTE I/O Controller Chip

• Bundle Software:
  • Norton Internet Security (OEM version)

• Operating System:
  • Support for Microsoft Windows 7/ Vista/ XP

Motherboard Specifications

• Model:
  • Gigabyte GA-78LMT-USB3 Motherboard

• CPU:
  • AM3+ Socket:
  • Support for AMD AM3+ processor
  • Support for AMD AM3 Phenom II processor / AMD Athlon II processor
    (Please refer "CPU Support List" for more information.)
• Chipset:
  • North Bridge: AMD 760G
  • South Bridge: AMD SB710

• Hyper Transport Bus:
  • 4400 MT/s

• Memory:
  • 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
  • Dual channel memory architecture
  • Support for 1333+ (O.C.)/1066 MHz memory modules
    (Please refer "Memory Support List" for more information.)

• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16
  • 1 x PCI Express x1 slot
    (All PCI Express slots conform to PCI Express 2.0 standard.)
  • 1 x PCI slot
• On-Board Video:
  • North Bridge:
    1 x D-Sub port
    1 x DVI-D port, supporting a maximum resolution of 1920x1200 (Note 2)
    1 x HDMI port, supporting a maximum resolution of 1920x1200 (Note 3)

• On-Board Audio:
  • Realtek ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel (Note 4)
  • Support for S/PDIF Out

• On-Board LAN:
  • 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
• BIOS:
  • 2 x 16 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress BIOS Rescue
  • Support for Download Center
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune (Note 6)
  • Support for Smart Recovery
  • Support for Auto Green
  • Support for On/Off Charge
  • Support for Q-Share
• Form Factor:
  • Micro ATX Form Factor
  • 24.4cm x 24.4cm (9.6 Inch x 9.6 Inch)
