Gigabyte GA-7A8DRH

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 X VGA
  • 1 x Parallel
  • 1 X Serial
  • 2 x USB
  • 2 x RJ 45 Port


• Video:
  • Build in ATI Rage XL with 8M SDRAM on board

• Management:
  • ACPI Power Management
  • Wake-On-LAN (WOL)
  • Power On LAN
  • AC Power Failure Recovery

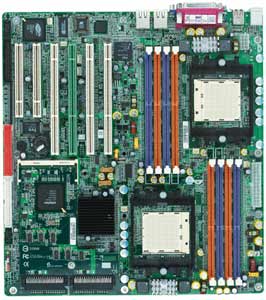

Gigabyte GA-7A8DRH Motherboard

• Model:
  • Gigabyte GA-7A8DRH Motherboard

• Processor Support:
  • Support Dual AMD ® Opteron 200 series Processors
  • Only version 2.0 supports dual core
  • Socket 940


• FSB:
  • 800 Hyper Transport bus


• Chipset:
  • AMD ® 8111

• Memory:
  • Supports 4 * DDR socket slots for Primary CPU
  • Supports 4 * DDR socket slots for Secondary CPU
  • CPU1 supports memory capacity up to 8GB
  • CPU2 supports memory capacity up to 16GB
  • Supports registered ECC DDR200/266/333/400


• Expansion Slots:
  • 4 x PCI-X 64bit/66~100MHz Slots
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 2 IDE connectors
  • Adaptec ® 7902W U320 SCSI Controller
  • Support RAID 0,1


• On-Board LAN:
  • Intel ®82541GI Gigabit Ethernet controller
  • Intel ®82545GM Gigabit Ethernet controller
  • Wake On LAN (WOL)
  • Adapter Fault Tolerance (AFT)
  • Adaptive Load Balancing (ALB)
  • EtherChannel* (FEC/GEC)


• BIOS:
  • Phoenix BIOS on 4Mb flash RAM
  • Supports PXE
  • Multiple boot options
  • Supports Console Redirection
  • DMI 2.0 compliant


• Form Factor:
  • E-ATX Form Factor, 13 x 12 inch
