• Internal I/O Interface:
  • 1 24-pin ATX power connector
  • 1 4-pin ATX 12V power connector
  • 1 floppy connector
  • 1 CPU fan connector
  • 1 system fan connector
  • 1 power fan connector
  • 1 front panel connector
  • 1 front audio connector
  • 1 CD In connector
  • 1 SPDIF In/Out connector
  • 3 USB 2.0/1.1 connectors for additional 6 USB 2.0/1.1 ports by cables
  • 2 IEEE1394a connectors for additional 2 port by cable
  • 1 Power LED connector
  • 1 Chassis Intrusion connector
  • ATX power connector and ATX 12V connector

• BIOS:
  • 1 4Mbit flash ROM
  • Use of licensed AWARD BIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

• Special Features:
  • Supports @BIOS
  • Supports Download Center
  • Supports Q-Flash
  • Supports EasyTune (Note 3)
  • Supports Xpress Install
  • Supports Xpress Recovery2
  • Supports Xpress BIOS Rescue

• Hardware Monitoring:
  • System voltage detection
  • CPU temperature detection
  • CPU / Power / System fan speed detection
  • CPU warning temperature
  • CPU fan failure warning
  • Supports CPU Smart Fan function

Motherboard Specifications

• Model:

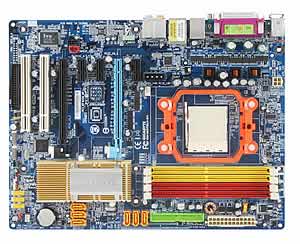

  • Gigabyte GA-M57SLI-S4 (rev. 1.0)

• Processor Support:
  • Socket AM2
  • AMD Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon 64 / Sempron processor

• Chipset:
  • NVIDIA ® nForce 570-SLI

• FSB:
  • 2000MHz HyperThreading Speed

• Memory:
  • 4 DDR2 DIMM memory slots (supports up to 16GB memory)(Note 1)
  • Supports dual channel DDR2 800/667/533/400 DIMMs
  • Supports 1.8V DDR2 DIMMs
  • Support ECC Memory

• Expansion Slots:
  • 2 PCI Express x16 slot
  • 3 PCI Express x1 slots
  • 2 PCI slots

• On-Board Audio:
  • Onboard Realtek ALC883 8 channel Audio CODEC

• On-Board LAN:
  • Marvell 88E1116 phy (10/100/1000Mbit)

• Storage:
  • 1 IDE connectors
  • 6 SATA 3Gb/s ports support RAID 0, 1, 0+1 and 5

• Rear Panel I/O Ports:
  • 1 PS/2 keyboard port
  • 1 PS/2 mouse port
  • 1 parallel port
  • 1 SPDIF out port (coaxial)
  • 1 SPDIF out port (optical)
  • 1 COMA port
  • 4 USB 2.0/1.1 ports
  • 1 IEEE1394a port
  • 1 RJ-45 port
  • 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out) / Center / Subwoofer Speaker Out / Side Speaker Out)

• Form Factor:
  • ATX form factor
  • 12 x 9.2 inches
