Gigabyte GA-M61SME-S2

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x VGA
  • 3 x audio jacks (Line In / Line Out / MIC In)
  • 1 x Parallel port
  • 1 x Serial port
  • 4 x USB
  • 1 x RJ 45 Port


• Management:
  • CPU / System temperature detection
  • CPU / System fan speed detection
  • CPU warning temperature
  • CPU / System fan failure warning
  • CPU Smart Fan Control


• Form Factor:
  • Micro ATX form factor 24.4cm x 22.5cm

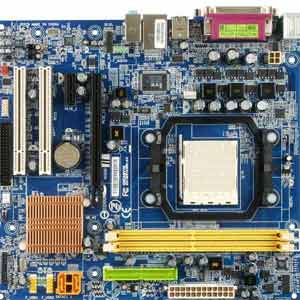

Gigabyte GA-M61SME-S2 Motherboard

• Model:
  • Gigabyte GA-M61SME-S2 Motherboard

• Processor Support:
  • Support for Socket AM2+/ AM2 processors: AMD PhenomFX processor/ AMD Phenom processor/ AMD Athlon 64 FX processor/AMD Athlon 64 X2 Dual-Core processor/AMD Athlon 64 processor/AMD Sempron processor
  • (Note) If you install AMD AM2+ CPU on AM2 motherbord, the system bus speed will downgrade from HT3.0(5200MHz) to HT1.0(2000 MT/s) spec; however, the frequency of AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.

• FSB:
  • 2000 MT/s


• Chipset:
  • NVIDIA® GeForce 6100

• Memory:
  • 2 DDR2 DIMM memory slots (supports up to 8GB memory)
  • Supports dual channel DDR2 800/667/533/400 DIMMs
  • Supports 1.8V DDR2 DIMMs


• Expansion Slots:
  • 1 x PCI Express x 16 (run x8)
  • 1 x PCI Express x 1
  • 2 x 32-bit 33MHz PCI


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 2x SATA 3Gb/s connectors (SATAII0, SATAII1) supporting up to 4 SATA 3Gb/s devices
  • Support for SATA RAID 0, RAID 1


• Audio:
  • Realtek ALC883 Audio Codec


• Video:
  • Integrated nVidia CineFX 3.0 Graphics Engine


• On-Board LAN:
  • Realtek RTL8201 10/100Mbps Ethernet Controller


• BIOS:
  • AWARD BIOS
  • 1 x 4 Mbit flash
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0
