• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x coaxial S/PDIF Out connector
  • 1 x optical S/PDIF Out connector
  • 2 X IEEE 1394 port
  • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • 8 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Firewire:
  • T.I. TSB43AB23 chip

• Management:
  • ACPI Power Management
  • Wake-On-LAN (WOL)
  • Power On LAN
  • AC Power Failure Recovery

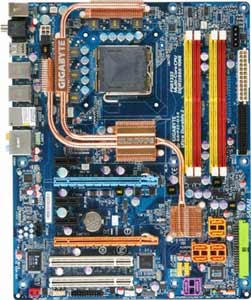

Gigabyte GA-P35-DS4 Motherboard

• Model:
  • Gigabyte GA-P35-DS4 Motherboard

• Processor Support:
  • Support for an Intel ® Core 2 Extreme processor/ Intel ® Core 2 Quad processor/Intel ® Core 2 Duo processor/ Intel ® Pentium ® processor Extreme Edition/Intel ® Pentium ® D processor/ Intel ® Pentium ® 4 processor Extreme Edition/Intel ® Pentium ® 4 processor/ Intel ® Celeron ® processor
  • Socket LGA 775


• FSB:
  • 1333/1066/800 MHZ


• Chipset:
  • Intel® P35

• Memory:
  • Supports DDR2 1333/1066/800 memory
  • Dual Channel architecture supports up to 8GB by 4 DIMM slots


• Expansion Slots:
  • 2 x PCI-E x16 (x16, x4)
  • 3 x PCI-E x1
  • 2x PCI 32bit/33MHz slots


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3,
    SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices
  • Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
  • 2 x SATA 3 Gb/s connectors (GSATAII0, GSATAII1) supporting up to 2 SATA 3Gb/s devices
  • Support for SATA RAID 0, RAID 1, and JBOD


• Audio:
  • 8 Channels ALC889A Audio controller
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out


• On-Board LAN:
  • Realtek 8111 Gigabit LAN Controller


• BIOS:
  • AWARD BIOS
  • Supports Virtual DualBIOS
  • 2 x 8 Mbit flash
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0


• Form Factor:
  • ATX Form Factor, 305 x 244mm
