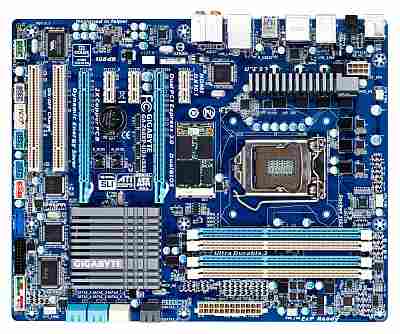

Gigabyte GA-Z68XP-UD3-iSSD Motherboard

• Storage:
  • Chipset:
    2 x SATA 6Gb/s connectors (SATA3_0~SATA3_1) supporting up to 2 SATA 6Gb/s devices
    4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
    * The SATA2_5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
  • 1 x Marvell 88SE9172 chip:
    2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
    Support for SATA RAID 0 and RAID 1

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse port
  • 1 x HDMI port
  • 1 x optical S/PDIF Out connector
  • 1 x IEEE 1394 port
  • 8 x USB 2.0/1.1 ports
  • 2 x USB 3.0/2.0 ports
  • 1 x RJ-45 port
  • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 4 x SATA 3Gb/s connectors
  • 1 x mSATA connector + SSD 20 GB
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x power fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 3 x USB 2.0/1.1 headers
  • 1 x USB 3.0/2.0 header
  • 1 x IEEE 1394a header
  • 1 x serial port header
  • 1 x clearing CMOS jumper
  • 1 x Trusted Platform Module (TPM) header

• BIOS:
  • 2 x 32 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Hardware Monitoring:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System/Power fan speed detection
  • CPU overheating warning
  • CPU/System/Power fan fail warning
  • CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
• Bundle Software:
  • Norton Internet Security (OEM version)
  • Intel ® Smart Response Technology
  • LucidLogix Virtu
    * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.

Motherboard Specifications

• Model:
  • Gigabyte GA-Z68XP-UD3-iSSD Motherboard

• Processor Support:
  • Support for Intel ® Core i7 processors/Intel ® Core i5 processors/ Intel ® Core i3 processors/Intel ® Pentium ® processors/Intel ® Celeron ® processors in the LGA1155 package
  • L3 cache varies with CPU
    (Some Intel ® Core processors require a graphic card, please refer "CPU support List" for more information.)
• Chipset:
  • Intel ® Z68 Express Chipset
• Memory:
  • 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  • Dual channel memory architecture
  • Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  • 3 x PCI Express x1 slots
    (All PCI Express slots conform to PCI Express 2.0 standard.)
  • 2 x PCI slots
• On-Board Video:
  • Integrated Graphics Processor:
  • 1 x HDMI port, supporting a maximum resolution of 1920x1200

• On-Board Audio:
  • Realtek ALC889 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for Dolby ® Home Theater
  • Support for S/PDIF Out

• On-Board LAN:
  • 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

• I/O Controller :
  • iTE IT8728 chip
• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress BIOS Rescue
  • Support for Download Center
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  • Support for Dynamic Energy Saver 2
  • Support for Smart 6
  • Support for Auto Green
  • Support for eXtreme Hard Drive (X.H.D)
  • Support for ON/OFF Charge
  • Support for Cloud OC
  • Support for 3TB+ Unlock
  • Support for TouchBIOS
  • Support for Q-Share
• Operating System:
  • Support for Microsoft ® Windows ® 8/7/Vista/XP
• Form Factor:
  • ATX Form Factor
  • 30.5cm x 24.4cm (12 Inch x 9.6 Inch)
