Intel D975XBX2KR

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x Firewire
  • 1 x Audio headers
  • 1 X SPDIF Coaxial
  • 1 x Parallel
  • 1 x Serial
  • 4 x USB 2.0 Ports
  • 1 x RJ 45 Port


• ATI CrossFire Multi-GPU Platform Support:
  • ATI CrossFire technology enables two ATI graphics cards to work together for ultimate 3D gaming performance and visual quality


• Management:
  • ACPI Power Management
  • Wake-On-LAN (WOL)
  • Power On LAN
  • AC Power Failure Recovery

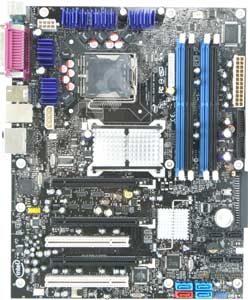

Intel D975XBX2KR Motherboard

• Model:
  • Intel D975XBX2KR Motherboard

• Processor Support:
  • Support Intel Core 2 Quad /Core 2 Extreme/ Core 2 Duo/ Pentium 4 Extreme Edition/ Pentium D/ Pentium 4 Processors
  • Socket LGA775


• FSB:
  • 1066/800 MHz


• Chipset:
  • Intel ® 975X

• Memory:
  • Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 800, DDR2 667, or DDR2 533 MHz DIMMs
  • Support for up to 8 GB of system memory


• Expansion Slots:
  • 1 PCI-E 16x
  • 1 PCI-E 16x (x8)
  • 1 PCI-E 16x (x4)
  • 2 PCI 32-bit/33 MHz


• Storage:
  • One channel supporting up to two IDE devices
  • Four Serial ATA 3.0 Gbps ports ( 1 eSATA)
  • Support RAID 0, 1, 0+1, 5


• Audio:
  • 8-channel (7.1) audio subsystem with five analog audio outputs and two S/PDIF digital audio outputs (coaxial and optical) using the Sigmatel* 9274D audio codec


• Firewire:
  • 2 ports, (1 back, 1 header)


• On-Board LAN:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82573E/82573L Gigabit Ethernet Controller


• BIOS:
  • Intel ® BIOS (resident in the SPI Flash device)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play,and SMBIOS


• Form Factor:
  • ATX, 12 x 9.6 inch
