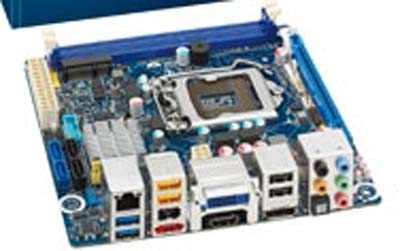

Intel DH77DF Motherboard

• Storage:
  • 4 SATA Ports
  • 2 SATA 6.0 Gb/s
  • 1 e-SATA
  • Raid Configuration: 0,1,5,10

• Rear Panel I/O Ports:
  • Ten USB 2.0 Ports , four back panel ports, four ports via internal headers and two ports via Mini PCI Express* connector
  • Four USB 3.0 Ports , two back panel ports and two additional ports via internal headers
  • Two IEEE 1394a ports , one back panel port and one via internal header
  • Five analog audio outputs and one optical S/PDIF out port

  • Internal S/PDIF header and front panel audio header
  • Audio (back channel + front channel): 8+2
  • S/PDIF Out Connector: 1


• BIOS:
  • ID String: KCH7710H.86A

• Special Features:
  • Intel ® Clear Video Technology:YES
  • Dual Display Capable: YES
  • Intel ® HD Audio Technology: YES
  • Intel ® Rapid Storage Technology: YES


Motherboard Specifications

• Model:
  • Intel DH77DF Motherboard


• Processor Support:
  • Intel ® Core i7 processor series in an LGA1155 socket
  • Intel ® Core i5 processor series in an LGA1155 socket

• Chipset:
  • Intel ® H77 Express Chipset with Intel ®  Rapid Storage Technology

• Memory:
  • Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 16001  /1333/1066 MHz DIMMs
  • Support for up to 16 GB of system memory
  • Memory Channel: 2


• Expansion Slots:
  • One PCI Express 3.0 x 16 discrete graphics card connector
  • One PCI Express* Mini Card connector with support for mSATA Solid-State Drive

• On-Board Video:
  • DVI-I, HDMI and DisplayPort* for processors with Intel ® HD Graphics
  • Support for PCI Express* 3.0 x16 add-in graphics card2
  • Requires a Processor with Intel Graphics Technology: YES


• On-Board Audio:
  • 10-channel (7.1+2 independent multi-streaming) audio subsystem using the Realtek* ALC 898 audio codec with 110dB DAC signal to noise ratio

• On-Board LAN:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel ®  82579V Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • Mini-ITX
  • 6.57" x 6.69"
