Intel DX79SI

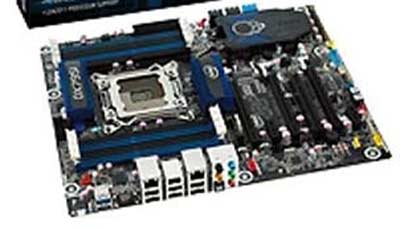

Intel DX79SI Motherboard

• Storage:
  • 4 SATA Ports
  • 2 SATA 6.0 Gb/s Ports
  • Raid Configuration: 0,1,5,10


• Rear Panel I/O Ports:
  • Four SuperSpeed USB 3.0 ports (2 external ports, 2 via internal header)
  • 14 USB 2.0 ports (6 external ports, 8 via internal headers)
  • Six Serial ATA ports: 2 internal connectors (6.0 Gb/s), 4 internal connectors (3.0 Gb/s)
  • Two IEEE 1394a ports (1 external port, 1 via internal header)
  • Consumer Infrared receiver and emitter
  • S/PDIF Out Connector: 1


• BIOS:
  • ID String: SIX7910J.86A

• Special Features:
  • Firewire
  • Port Qty.: 2
  • Integrated Wifi: BT/Wifi dongle

• Accessories:
  • Wi-Fi/BT module included (BOX only)

Motherboard Specifications

• Model:
  • Intel DX79SI Motherboard


• Processor Support:
  • Intel ® Core i7 Extreme Edition processor series in the LGA2011 socket

• Chipset:

  • Intel ® X79 Express Chipset

• Memory:
  • Eight 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for up to DDR3 2400+ O.C.
  • Support for up to 64 GB of system memory
  • Memory Channel: 4


• Expansion Slots:
  • Three PCI Express* 3.0 x16 bus add-in card connectors
  • Two PCI Express* x1 connectors
  • One PCI conventional bus connector

• On-Board Audio:
  • 10-channel (7.1+2 independent multi-streaming) audio subsystem with five analog audio outputs w/optical S/PDIF out port

• On-Board LAN:
  • Dual Gigabit Intel ® (10/100/1000 Mbits/sec) LAN subsystem using two Intel ® Gigabit Ethernet Controllers

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6"
