Intel DZ68DB

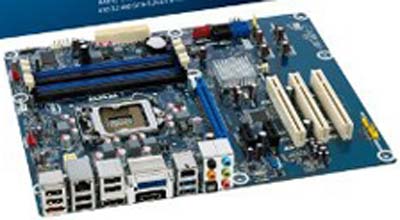

Intel DZ68DB Motherboard

• Storage:
  • 2 SATA 6.0 Gb/s
  • 3 SATA 3.0 Gb/s
  • 1 e-SATA 3.0 Gb/s


• Rear Panel I/O Ports:
  • Two Serial ATA 6.0 Gb/s, three SATA 3.0 Gb/s, and one External SATA (eSATA) 3.0 Gb/s ports
  • Two USB 3.0 ports
  • Ten USB 2.0 ports, six back panel ports, and eight additional ports via four internal headers
  • Consumer Infrared Headers: YES
  • S/PDIF Out Connector: 1


• BIOS:
  • ID String: DBZ6810H.86A with Intel Fast Boot Technology

• Special Features:
  • Firewire
  • Port Qty.: 1+1
  • Intel ® HD Audio Technology: YES
  • Intel ® Rapid Storage Technology: YES


Motherboard Specifications

• Model:
  • Intel DZ68DB Motherboard


• Processor Support:
  • Intel ® Core i7 processor series in an LGA1155 socket
  • Intel ® Core i5 processor series in an LGA1155 socket
  • Intel ® Core i3 processor series in an LGA1155 socket

• Chipset:
  • Intel ® Z68 Express Chipset supporting Intel ®  Smart Response Technology
  • Intel ® Rapid Storage Technology (Intel ® RST) for RAID 0, 1, 5, and 10

• Memory:
  • Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 1333 /1066 MHz DIMMs
  • Support for up to 32 GBς1 of system memory
  • Memory channels: 2


• Expansion Slots:
  • One PCI Express 2.0 x 16 discrete graphics card connector
  • Two PCI Express 2.0 x 1 connectors
  • Three Conventional PCI bus connectors

• On-Board Video:
  • DVI-I, DisplayPort*, and HDMI*
  • Integrated Graphics: YES
  • Intel ® Clear Video Technology: YES
  • Dual Display Capable: YES
  • Requires a Processor with Intel Graphics Technology: YES


• On-Board Audio:
  • Intel ® High Definition Audio (Intel ® HD Audio) subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem using the Realtek ALC892* audio codec
  • Five analog audio ports and one optical S/PDIF out port
  • Internal S/PDIF header and front panel audio header

• On-Board LAN:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel ®  82579V Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6"
