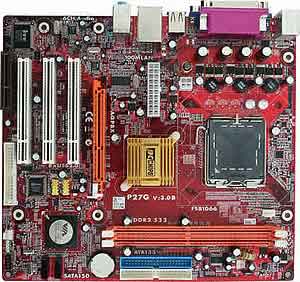

PC Chips P27G (V1.0)

• Storage:
  • 2 x Serial ATA connectors
  • 2 x UltraDMA 133/100/66

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 1 x Parallel Port
  • 1 x Serial Port
  • 1 x VGA port
  • 4 x USB 2.0 Ports
  • 1 x RJ 45 Port
  • 1 x Audio I/O (Line-in, Line-out and Mic-in)

• Internal I/O Interface:
  • 20-pin ATX power supply connector
  • 4-pin ATX 12V power supply connector
  • 2 x USB 2.0 header support additional 4 USB2.0 ports
  • 2 x Serial ATA connectors
  • 1 x Front panel switch/LED header
  • 1 x Front panel audio header
  • CPU / SYS FAN headers
  • 1 x IrDA for SIR header
  • 1 x Speaker header
  • 1 x CD in header
  • 1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120

• BIOS:
  • AMI 4Mb Flash ROM
  • Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
  • Full support for ACPI revision 1.0 specification

Motherboard Specifications

• Model:
  • PC chips P27G (V1.0)

• Processor Support:
  • Socket 775
  • Intel Pentium 4/Celeron D/Pentium D processors

• Chipset:
  • VIA P4M800Pro/8237R

• FSB:
  • 1066/800/533 MHz

• Memory:
  • Single-channel DDR memory architecture
  • 2 x 240-pin DDR2 DIMM socket support up to 2 GB
  • Support DDR2 533 DDR2 SDRAM

• Expansion Slots:
  • 1 x AGP 8X
  • 3 x PCI slot
  • 1 x CNR slot

• On-Board Video:
  • Embedded UniChrome Pro 3D Graphics with 64M share memory

• On-Board Audio:
  • Realtek ALC655 6-channel audio codec
  • Compliant with AC'97 2.3 specification

• On-Board LAN:
  • VIA VT6103L 10/100Mbps Fast Ethernet PHY

• Form Factor:
  • Micro-ATX Form Factor
  • 9.6" x 9.0"
