• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

• Form Factor:
  • 12 in.(L) x 6.89 in.(W) ATX Form Factor

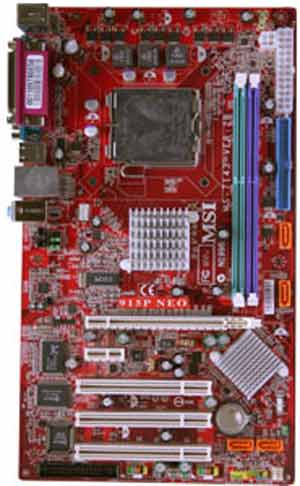

MSI 915P Neo-F Specifications

• Model:
  • MSI 915P Neo-F

• Processor Support:
  • Supports Intel Pentium 4 / Celeron D processors in LGA775 package.
  • Supports up to Pentium 4 5xx, 6xx (EM64T) and Celeron D 3xx sequence processor.
  • Supports Intel 04B and 04A processors
  • Supoprts Intel Hyper-Threading Technology
  • Supports Intel new technology "EIST"

• FSB:
  • Support 533/800MHz

• Chipset:
  • Intel ® 915P Chipset
  • Intel ® ICH6 Chipset

• Memory:
  • Supports two unbuffered DIMM of DDR SDRAM
  • Supports up to 2GB memory size without ECC
  • Supports dual channel DDR333/DDR400 MHz

• Expansion Slots:
  • One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant.)
  • One PCI Express x1 slots (supports PCI Express Bus specification v1.0a compliant.)
  • Three 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)

• On-Board Audio:
  • Chip integrated (5.1 ch H/W audio)

• On-Board LAN:
  • Realtek 8110S 10/100/1000 LAN chipset
