• BIOS:
  • AMI BIOS 8.0 on 4Mbit Flash ROM
  • LAN remote boot (PXE) and SMBIOS v2.3
  • BIOS Boot Specification v3.1 (BBS) support
  • Auto configuration of IDE hard drive types


• Hardware Monitoring:
  • Total of seven 3-pin fan headers
  • Six fan headers with tachometer monitoring
  • One 3-pin chassis intrusion header
  • Temperature, voltage, and fan monitoring
  • Watchdog timer



• Hardware Monitoring:
  • QLogic Zircon Baseboard Management Controller (BMC) based on powerful ARM7 technology
  • Tailored for IPMI highest 1.5 Spec.
  • Supports KCS and BT styles
  • Supports flexible Windows and Linux based Management Solution
  • Supports RMCP and SNMP protocols
  • Supports ASF standard and EMP
  • I2C serial multi-master controllers and UARTs
  • Built-in IPMB connector
  • Supports remote Power on/off and reset support(IPMI over LAN)
  • Server Management Daughter card via built-in 2x25 header


• Rear Panel I/O Ports:
  • Total of seven 3-pin fan headers
  • Six fan headers with tachometer monitoring
  • One 3-pin chassis intrusion header
  • Temperature, voltage, and fan monitoring
  • Watchdog timer


• Internal I/O Interface:
  • One floppy connector supports up to two drives
  • Two 9-pin serial ports (one connector and one header)
  • One 25-pin ECP/EPP/SPP parallel header (opt.)
  • Four USB 1.1 ports (two rear, two via header)
  • PS/2 keyboard and mouse connectors


• Miscellaneous:
  • FCC Class B (Declaration of Conformity)
  • European Community CE

Motherboard Specifications

• Model:

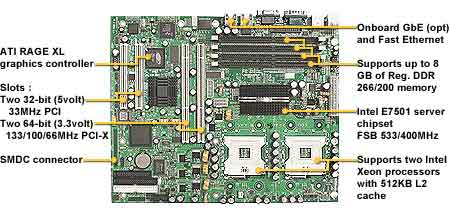

  • Tyan Tiger i7501 S2723GNN


• Processor:
  • Dual mPGA604 ZIF sockets
  • Supports up to two Intel ® Xeon processors with 512KB of integrated L2 cache
  • Onboard VRM (VRM 9.1 spec)


• FSB (Front Side Bus):
  • Front-Side Bus support for 533/400MHz



• Chipset:
  • Intel ® E7501 server chipset
  • MCH + ICH3 + P64H2 + FWH
  • Intel ® P64H2 supports two PCI(-X) buses
  • Winbond W83627HF Super I/O chip
  • Winbond W83782D hardware monitoring chip



• Memory:
  • Four 184-pin 2.5V DDR DIMM sockets
  • Supports up to 8GB of Registered DDR266/200
  • Dual channel memory bus
  • Supports Registered memory only
  • Supports ECC type memory modules


• Expansion Slots:
  • Three independent PCI(-X) buses
  • Two 64-bit 133/100/66MHz (3.3V) PCI-X slots
  • Two 32-bit 33MHz (5V) PCI slot
  • Total of four usable slots

• IDE Controllers:
  • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices
  • Support for ATA-100/66/33 IDE drives and ATAPI-compliant devices


• Video:
  • ATI Rage XL PCI graphics controller
  • 8MB of video memory


• LAN:
  • Intel ® 82545EM Gigabit Ethernet controller (opt.) - One RJ-45 LAN connector with LEDs - Connected to PCI-X bus
  • Intel ® 82551QM Fast Ethernet controller - One RJ-45 LAN connector with LEDs


• Form Factor:
  • ATX footprint (12" x 9.8", 304.8 x 248.92mm)
