Microstar / MSI K8N Neo3-F

Microstar / MSI K8N Neo3-F

Part #: 108619
Condition: New- Retail Box
Warranty: 365 days
Brand: Microstar / MSI
| Log in to add review
Rate this product:

Updating Variation

Please wait while we update product details...

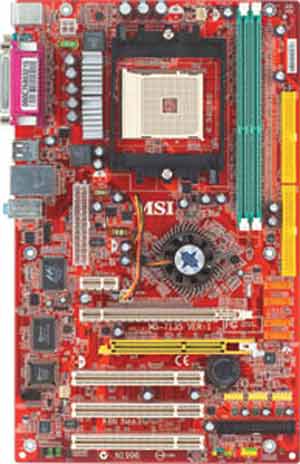

MSI K8N Neo3-F Motherboard

Socket 754 for AMD Athlon 64, nVIDIA nForce4-FX chipset, 2 DDR slots, 1 PCI Express 16x, 1 PCI Express 1x, 3 PCI, 1 AGR, On-board Audio, LAN, USB, SATA. ATX form factor.


Socket 754 for AMD Athlon 64, nVIDIA nForce4-FX chipset, 2 DDR slots, 1 PCI Express 16x, 1 PCI Express 1x, 3 PCI, 1 AGR, On-board Audio, LAN, USB, SATA. ATX form factor.

  • Internal I/O Interface:
    • 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
    • 1 serial port
    • 1 parallel port supports SPP/EPP/ECP mode
    • 10 USB2.0 ports (Rear x 4 / Front x 6)
    • 1 Audio (Line-In/Line-Out/MIC) port
    • 1 RJ-45 LAN Jack
    • 2 IDE ports support 4 IDE device
    • 4 serial ATA ports

  • Storage:
    • Dual IDE controllers on the NVIDIA nForce4-4X chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ulra DMA 133/100/66 operation modes
    • Can connect up to 4 IDE devices
    • Supports 4 SATA ports with up to 150MB/s transfer rate
  • BIOS:
    • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
    • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
    • Supports boot from LAN, USB Device 1.1 & 2.0 and SATA HDD
  • Form Factor:
    • 11.61 in (L) x 7.28 in(W)
    • ATX Form Factor

MSI K8N Neo3-F Specifications

  • Model:
    • MSI K8N Neo3-F
  • Processor Support:
    • Supports 64-bit AMD ® Athlon 64 processor (Socket 754)
    • Supports 2800+, 3000+, 3200+, 3400+, 3700+
    • Supports Sempron 2600+, 2800+, 3000+, 3100+, 3300+

  • Chipset:
    • NVIDIA ® nForce4-4X Chipset
  • Memory:
    • Supports single channel, using two 184-pin DDR DIMMs
    • Supports a maximum memory size up to 2GB
    • Supports 2.5v DDR SDRAM DIMM

  • Expansion Slots:
    • One PCI Express X16 slot (PCI Express Bus specification v1.0a compliant)
    • One PCI Express X1 slot (PCI Express Bus specification v1.0a compliant)
    • Three 32-bit Master 3.3V/5V PCI Bus slots
    • One AGR (Advanced Graphics Riser) slot

  • On-Board Audio:
    • RealTek ALC655 6-channel software audio codec

  • On-Board LAN:
    • Marvell PHY 88E1111 Gigabit Ethernet chip
