• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 Mouse
  • 6 x USB 2.0 Ports
  • 2 IEEE 1394 (Rear x 1/ **Front x 1) (** Front 1394 port supported by pin-out)
  • 2x eSATA Ports
  • 1 x RJ 45 Port
  • 1 6-in-1 audio jack (S/SPDIF out)


• Audio:
  • High Definition link controller integrated in Intel ICH9R chip
  • 8 channels audio codec Realtek 888T
  • Flexible 8 Ch. audio with jack sensing
  • Supports VoIP Card (Optional)
  • Compliance with Azalia 1.0 spec


• On-Board LAN:
  • Realtek RTL8111B PCI-Express Gb LAN Controller


• IEEE 1394:
  • VIA 6308P chipset
  • Supports up to two 1394 ports
  • Transfer rate is up to 400Mbps


• Form Factor:
  • ATX Form Factor
  • 12in.(L) x 9.65in.(W)

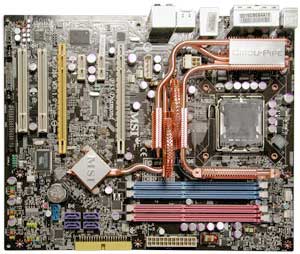

MSI P35D3 Platinum Motherboard

• Model:
  • MSI P35D3 Platinum Motherboard

• Processor Support:
  • Supports Socket 775 for Intel Core2 Quad, Core2 Extreme, Core2 Duo, Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE/Celeron D processors in LGA 775 package
  • Supoprts Intel 05B/05A and 04B/04A processors
  • Supports Intel Hyper-Threading technology
  • Supports EIST techonology
  • Supports Intel Quad Core Technology to 1333MHz and up


• FSB:
  • 800/1066/1333 MHz


• Chipset:
  • Intel ® P35

• Memory:
  • Supports 4 unbuffered DIMM of 1.5 Volt DDR3 SDRAM
  • Supports up to 8GB memory size
  • Support Dual Channel DDR3 1066/1333MHz and up (Intel P35 chipset supports up to DDR3-1066 officially. For DDR3-1333 or higher, manually BIOS adjustment is needed)


• Expansion Slots:
  • Two PCI Express 16X slots with 1x16 and 1x4 operations (PCI Express Bus SPEC V1.0a compliant; supports CrossFire Technology)
  • Two PCI Express X 1 slot
  • Two PCI slots (support 3.3v/5v PCI bus interface).


• Storage:
  • One Ultra DMA 133 IDE port by Marvell 88SE6111
  • Supports PIO, Bus Master operation modes
  • Can connect up to 2 Ultra ATA drives
  • Serial ATAII controller integrated in ICH9R and Marvell 88SE6111
  • Transfer rate is up to 300MB/s
  • Can connect up to 7 Serial ATA II drives (4 internal drive & 2 eSATA drives from ICH9R, 1 drive from 88SE6111)
  • Supports ACHI controller with SATAII RAID 0, 1, 5 and 10 (ICH9R)
  • Supports SATAII hot plug

• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
