• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x COM port
  • 1 x Parallel
  • 1 x VGA Port
  • 6-Channel Audio I/O
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • SIS 968 built-in Gigabit MAC with external Attansic PHY


• Power Connector :
  • 1 x 24pin main power
  • 1 x 4pin CPU power

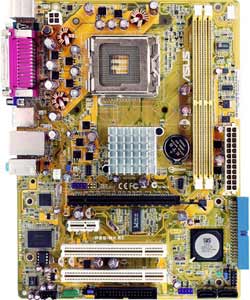

Asus P5S-MX SE Motherboard

• Model:
  • Asus P5S-MX SE Motherboard

• Processor Support:
  • Supports Intel® Core2 Duo / Pentium® D / Pentium® 4 / Celeron® D
  • Support Intel® 65nm and Dual Core CPU
  • Compatible with Intel 05B/05A and 04B/04A processors
  • Support Intel EIST EM64T/Hyper-Threading Technology
  • Socket LGA 775


• FSB:
  • 1066/800/533 Mhz


• Chipset:
  • SIS 671FX

• Memory:
  • 2 x 240-pin DDR2 DIMM socket support up to 4 GB
  • Support Dual Channel DDR2 667/533/400 Mhz
  • Non-ECC, un-buffered


• Expansion Slots:
  • 1 x PCI Express x16
  • 1 x PCIe x1
  • 2 x PCI


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 2 x SATA 3Gb/s with RAID 0, 1 function


• Audio:
  • High Definition Audio, Realtek ALC662 6-channel CODEC
  • Support Jack-Sensing interface


• Video:
  • SIS Mirage 3 Integrated Graphics
  • Up to 256MB shared memory


• BIOS:
  • 4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS 2.3
  • WOL by PME, WOR by PME, Chassis Intrusion, PXE


• Form Factor:
  • uATX Form Factor, 9.6"x 7.2" (24.5cm x 18.3cm)
