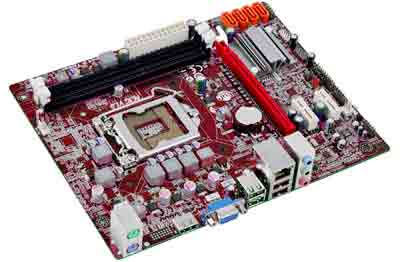

PC Chips P63G (V1.0) Motherboard

• Storage:
  • Support by H61
  • 4 x Serial ATAII 3.0Gb/s devices

• Rear Panel I/O Ports:
  • 1 x VGA port
  • 1 x HDMI port
  • 1 x RJ 45 Port
  • 1 x Audio I/O (Line-in, Line-out and Mic-in)
  • 4 x USB 2.0 Ports
  • 1 x PS/2 keyboard & PS/2 mouse connectors

• Internal I/O Interface:
  • 1 x 24-pin ATX Power Supply connector
  • 1 x 4-pin 12V Power connector
  • 1 x 4-pin CPU_FAN connector
  • 1 x 3-pin SYS_FAN connector
  • 1 x Speaker header
  • 1 x SPDIF out header
  • 1 x CLR CMOS header
  • 1 x Serial port header (COM)
  • 4 x Serial ATA II 3Gb/s connectors
  • 2 x USB 2.0 header support additional 4 USB2.0 ports
  • 1 x TPM header
  • 1 x Case open header
  • 1 x Front panel audio header
  • 1 x Front panel switch/LED header

Motherboard Specifications

• Model:
  • PC Chips P63G (V1.0) Motherboard


• Processor Support:
  • LGA1155 socket for new 2nd & 3rd Generation Intel ® Core Family/ Pentium ® /Celeron ® Processors
  • 4 +1Phase Power Design with VRD 12.0 Compliant

• Chipset:
  • Intel ® H61 Express Chipset

• Memory:
  • Dual-channel DDR3 memory architecture
  • 2 x 240-pin DDR3 DIMM sockets support up to 16GB
  • Supports DDR3 1333/1066 SDRAM
  • (Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 8GB)

• Expansion Slots:
  • 1 x PCI Express x16 Gen 2.0 slot
  • 2 x PCI Express x 1 slots

• On-Board Audio:
  • VIA VT1705 6-channel High Definition audio Codec
  • Compliant with HD audio specification

• On-Board LAN:
  • Atheros AR8152-B 10/100 Fast Ethernet Controller(Co-lay AR8151-B Gigabit Lan)

• Form Factor/Dimensions:
  • Micro ATX Form Factor, 225x180mm
• BIOS:
  • AMI BIOS with 32Mb SPI Flash ROM
  • Audio, LAN, can be disabled in BIOS
  • Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
  • F11 hot key for boot up devices option
  • Supports ACPI &DMI
  • Support Milti-language BIOS Utility
