• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard & PS/2 mouse connectors
  • 4 x USB ports
  • 1 x   RJ45 connector
  • 1 x VGA port
  • 1 x Parallel port (LPT1)
  • 1 x Serial port (COM1)
  • 1 x Audio port (Line-in, Line-out, Mic-in)

• Internal I/O Interface:
  • 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector
  • 1 x FDD connector supports two 360K~2.88MB FDDs
  • 2 x IDE connectors
  • 2 x Serial ATA (with Raid 0 and Raid 1 support )connectors
  • 2 x USB 2.0 header support additional 4 USB Ports
  • 1 x Speaker header
  • 1 x SPDIF out header
  • 1 x Front panel switch/LED header
  • 1 x Front panel audio header
  • CD in/ AUX in headers
  • CPUFAN/CASFAN connectors


• BIOS:
  • Award BIOS with 4Mb Flash ROM
  • Supports Plug and Play 1.0A, APM 1.2, Muli Boot, DMI
  • Supports ACPI revision 1.0 specification

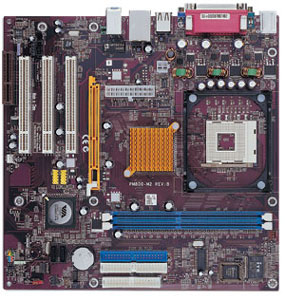

Motherboard Specifications

• Model:
  • PM800-M2

• Processor Support:
  • Pentium 4 3.4 GHz (2M,800MHz,mPGA-478) ~ 1.6 GHz (256K,400MHz,mPGA-478)
  • Celeron processor 2.8 GHz (256K,533MHz,mPGA-478) ~ 1.7 GHz (128K,400MHz,mPGA-478)
  • Socket 478 for Intel Pentium 4 processor
  • Support Hyper-Threading Technology


• Chipset:
  • VIA ® PM800 & VT8237
  • North Bridge: VIA ® PM800
  • South Bridge: VIA ® VT8237

• FSB:
  • 800/ 533/ 400MHz


• Memory:
  • 2 x 184-pin DDR DIMM socket support up to 2 GB
  • Support DDR400/333/266 MHz 2.5V DDR SDRAM

• Expansion Slots:
  • 1 x AGP 8X/4X slot
  • 3 x PCI slots
  • 1 x CNR slot


• On-Board Audio:
  • Realtek ALC655 6-Channel audio CODEC
  • Compliant with AC'97 2.3 specification


• On-Board Video:
  • Integrated S3 UniChrome Pro 2D/3D Graphics
  • Share memory : 16/32/64MB


• On-Board LAN:
  • VIA ® VT6103L 10/100 Mbps Fast Ethernet PHY

• Form Factor:
  • Micro-ATX Size, 244mm*244mm (9.60" x 9.60" )
