Supermicro P4SCT+II

Supermicro P4SCT+II

Part # 108493

Condition : New- Retail Box

| Warranty: 365 days

Brand : Supermicro
| Log in to add review
Rate this product:

Loading...

Out of Stock: Don’t worry—click “Notify Me” and we’ll email you as soon as it’s back.

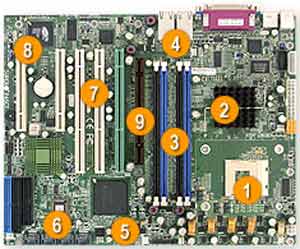

Supermicro P4SCT+II Motherboard

Supermicro  P4SCT+II Motherboard

Socket  478 for Intel Pentium 4, SATA, IDE, RAID, 4 DIMM, Intel 875P chipset, 1 8x AGP, 3 PCI-X, 2 PCI, VIDEO, USB, LAN Support.



Supermicro P4SCT+II Socket 478 for Intel Pentium 4, SATA, IDE, RAID, 4 DIMM, Intel 875P chipset, 1 8x AGP, 3 PCI-X, 2 PCI, VIDEO, USB, LAN Support.

  • Internal I/O Interface:
    • SATA Controller on-chip (Intel ® 6300ESB)
      (2x Drive support)
    • Adaptec AIC-8110: Marvell ® 88SX5041 4-port Hercules-1, rev B2, SATA Controller chip
      (4x Drive support)
    • Six Serial ATA ports
    • RAID 0, 1, 10 Supported (for 4 HDD)
    • RAID 0, 1 Supported (for 2 HDD)
    • SATA Zero Channel RAID Support for Zero-Channel RAID with Adaptec 2020SAH1 (SATA) ZCR Card: 1A, 3.3V, Low Profile 2.5" x 6.6", 400MHz I/O processor, 64MB ECC DDR memory on board
    • [Card not included]
    • RAID 0, 1, 5, JBOD

  • Storage/RAID:
    • Dual EIDE channels support up to four UDMA IDE devices
    • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
    • 1x Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
  • BIOS:
    • 8Mb Flash EEPROM with AwardBIOS ®
    • Plug and Play (PnP)
    • APM 1.2
    • DMI 2.3 support
    • PCI 2.3
    • ACPI 1.0
    • BIOS rescue hot keys
    • Hardware BIOS virus protection
    • USB Keyboard support

  • On-Board Video:
    • ATI Rage XL SVGA PCI video controller with 8MB of video memory

  • Form Factor:
    • ATX
    • 12" x 9.5", (30.5cm x 24.1cm)



P4SCT+II Specifications

  • Model:
    • Supermicro P4SCT+II
  • Processor Support:
    • Single mPGA478 ZIF Sockets
    • Supports an Intel ® Pentium ® 4 processor with 2MB of integrated Advanced Transfer Cache up to 3.4GHz (Extreme Edition)
    • Supports an Intel ® Celeron ® processor with 128KB of integrated Advanced Transfer Cache up to 2.8GHz
    • Hyper-threading enabled
    • 90 nano & 0.13 micron technology
  • Chipset:
    • Intel 875P

  • FSB:
    • 800/533MHz FSB

  • Memory:
    • Four 184-pin DIMM sockets
    • Supports up to 4 GB of DDR400/333/266 memory
    • Dual channel memory bus supported
    • Memory must be populated in pairs for dual channel interface
    • DDR400/333/266 (ECC or non-ECC) unbuffered SDRAM, 184-pin gold-plated DIMMs

  • Expansion Slots:
    • 8x AGP Pro 1.5V
    • 3x 64-bit 66MHz PCI-X (3.3V) slots
    • 2x 32-bit 33MHz PCI (5V) slots
  • On-Board LAN:
    • 1x Intel ® 82547GI CSA Gigabit Ethernet Controller
    • 1x Intel ® 82541 Gigabit Ethernet Controller
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output


  • Rear Panel I/O Ports:
    • 2x USB 2.0 / 1.1 ports
    • 1x USB header supports additional 2x USB 2.0 / 1.1 ports)
    • 2x Fast UART 16550 serial ports
    • Port 1x VGA Port
    • 1x ECP/EEP Parallel Port
    • 2x RJ45 Ports
    • PS/2 keyboard and mouse ports

  • Manageability:
    • Monitors for CPU Cores, +3.3V, +5, ±12V, +3.3V/+5V Standby, VBAT
    • CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 0.85V-1.65V
    • Total of five 3-pin fan headers
    • 3x fans with tachometer monitoring
    • Monitoring for CPU, chassis, environment
    • CPU thermal trip support
    • CPU Overheat LED
    • System Overheat LED
    • +5V standby alert LED
    • Suspend-state indicator LED
    • Chassis intrusion detection
    • Chassis intrusion header
